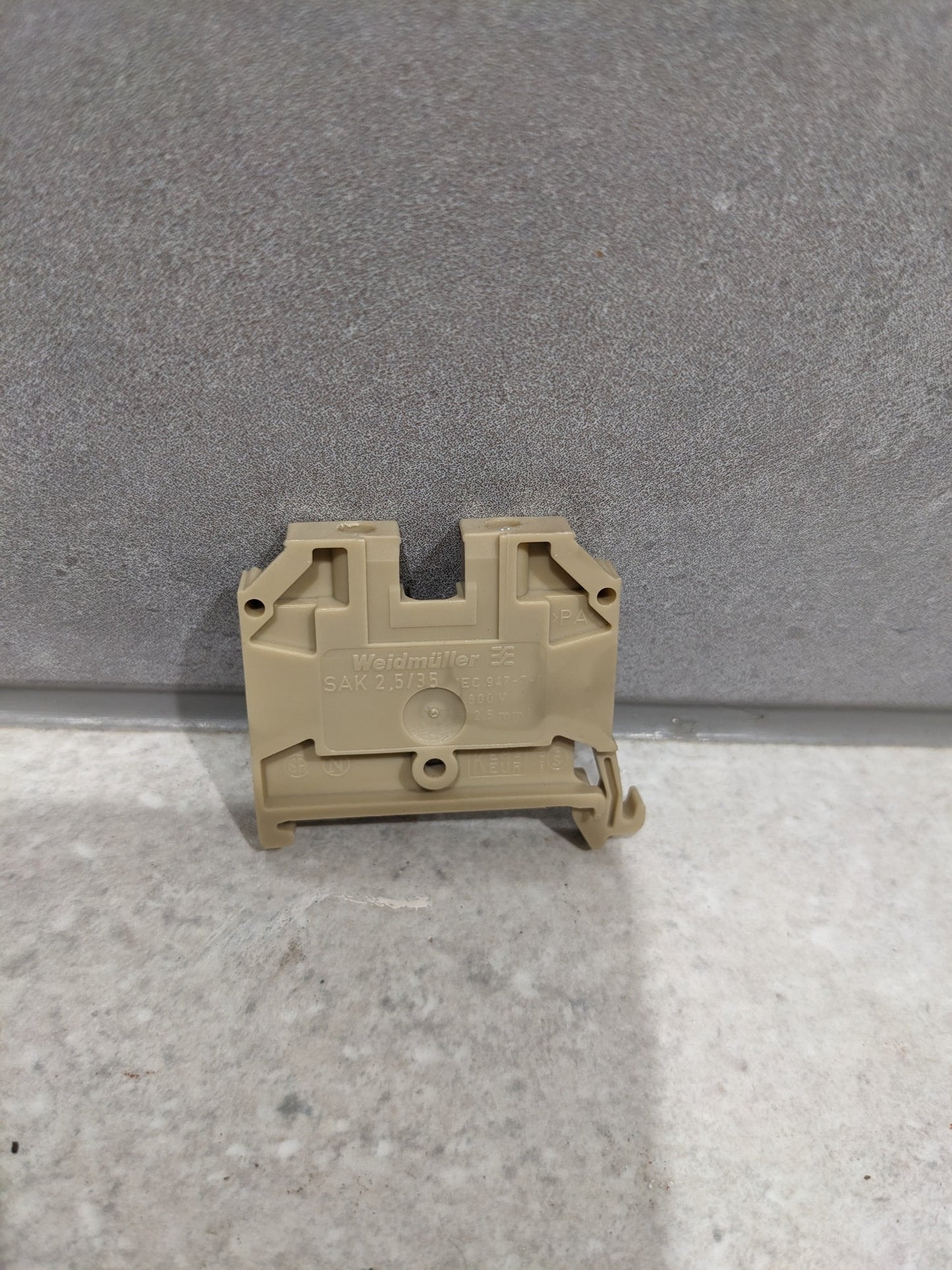

Weidmuller SAK 2.5/35 380460000 SAK Series, Feed-through terminal 2.5 mm² Screw
Weidmuller SAK 2.5/35 380460000 SAK Series, Feed-through terminal 2.5 mm² Screw
Couldn't load pickup availability
CONDITION
Good condition, in used condition, salvaged from a decomissioned
TIPS
-
Must be installed by a licensed Electrician
TESTS COMPLETED: B, C, F
Features:
Weidmuller SAK 2.5/35 380460000 SAK Series, Feed-through terminal 2.5 mm² Screw
SAK TS35 Range
High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmuller make planning easier and optimise safety. The terminals are manufactured from polyamide 6.6 with a working temperature of -50°C to +100°C, and meet the requirements of IEC 60947-1.
Features and Benefits
• AP SAK End plates available in 4 sizes to suit 2.5 mm² to 35 mm² terminals
• Flammability class UL 94V-2
• Clamping yoke technology
Approvals
CSA certified, UL listed, NEMKO, ATEX, and IECEx
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications:
Series SAK Wire Size 26 → 10 AWG Cable CSA 2.5mm² Colour Beige Current Rating 41A Number of Levels Single Termination Method Screw Down Voltage Rating 800 V Minimum Operating Temperature -50°C Maximum Operating Temperature +100°C
