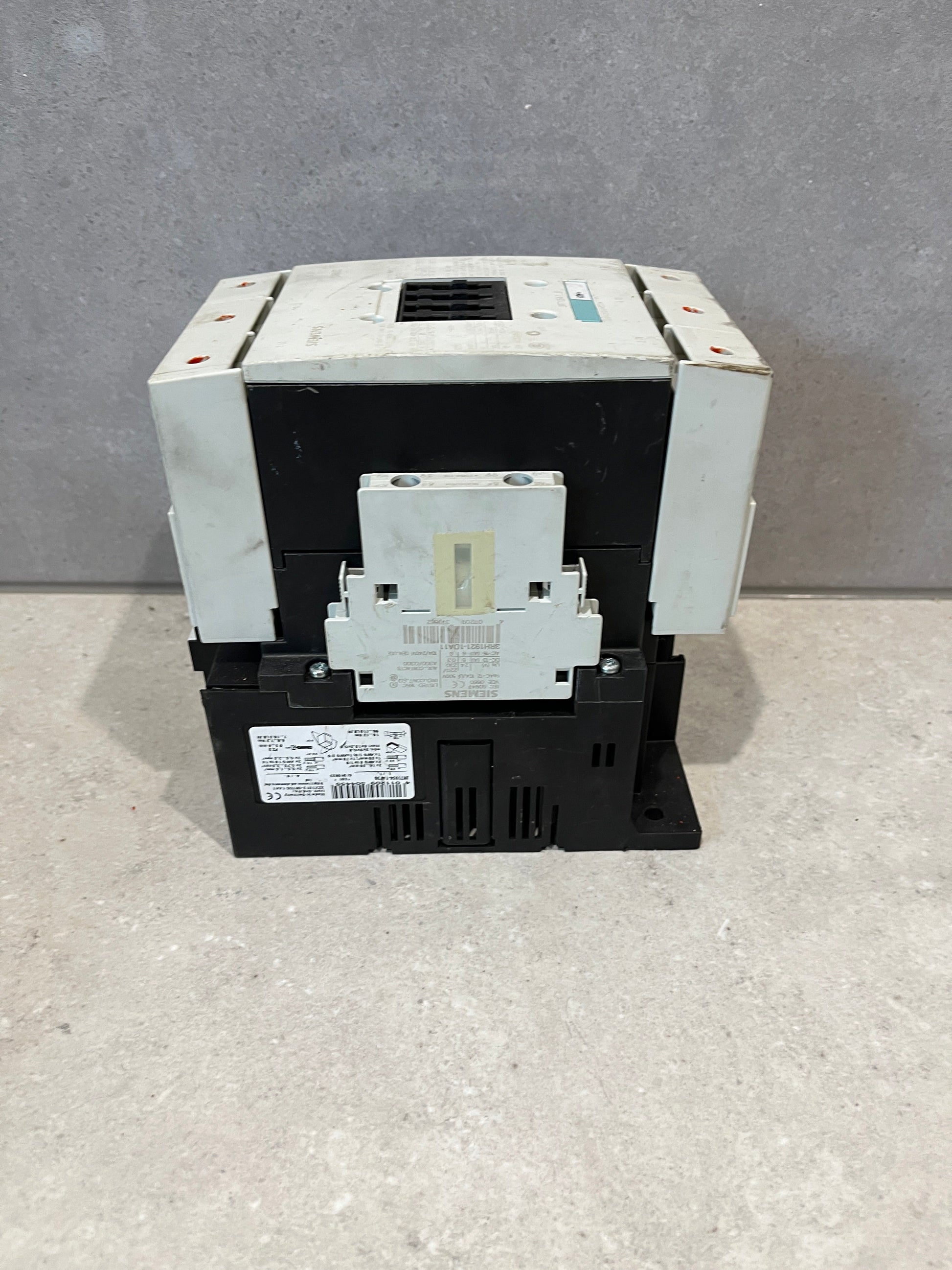

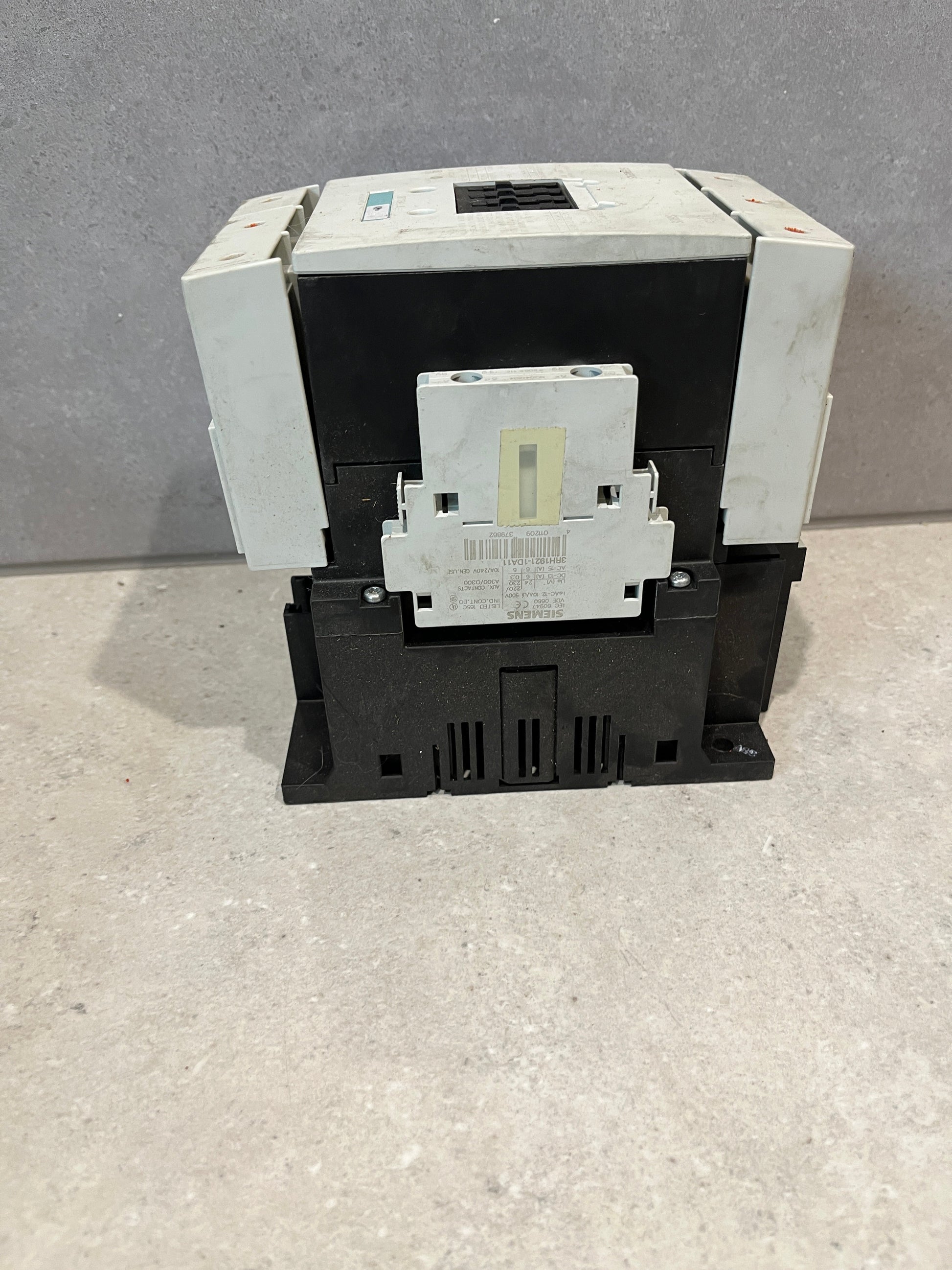

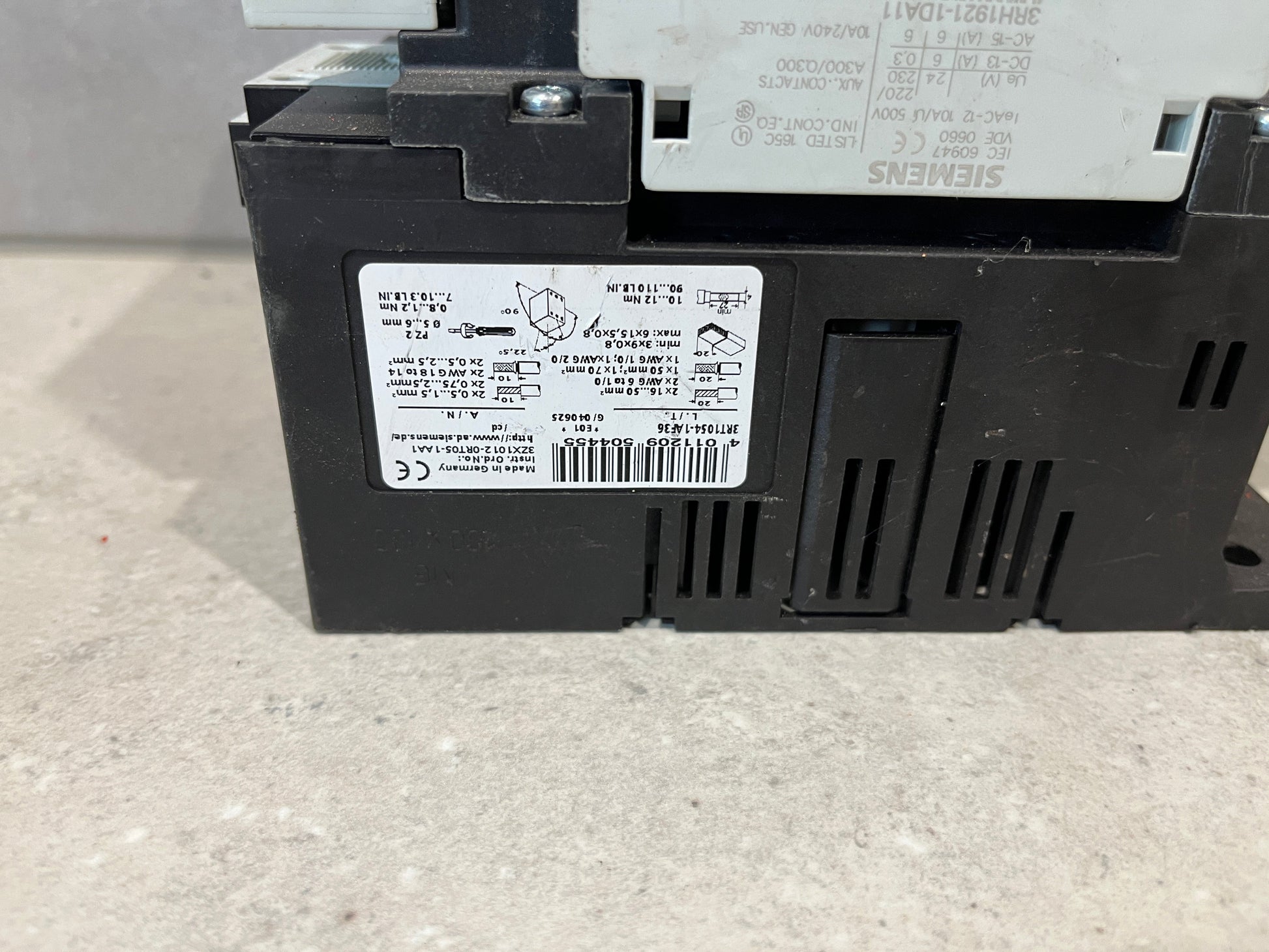

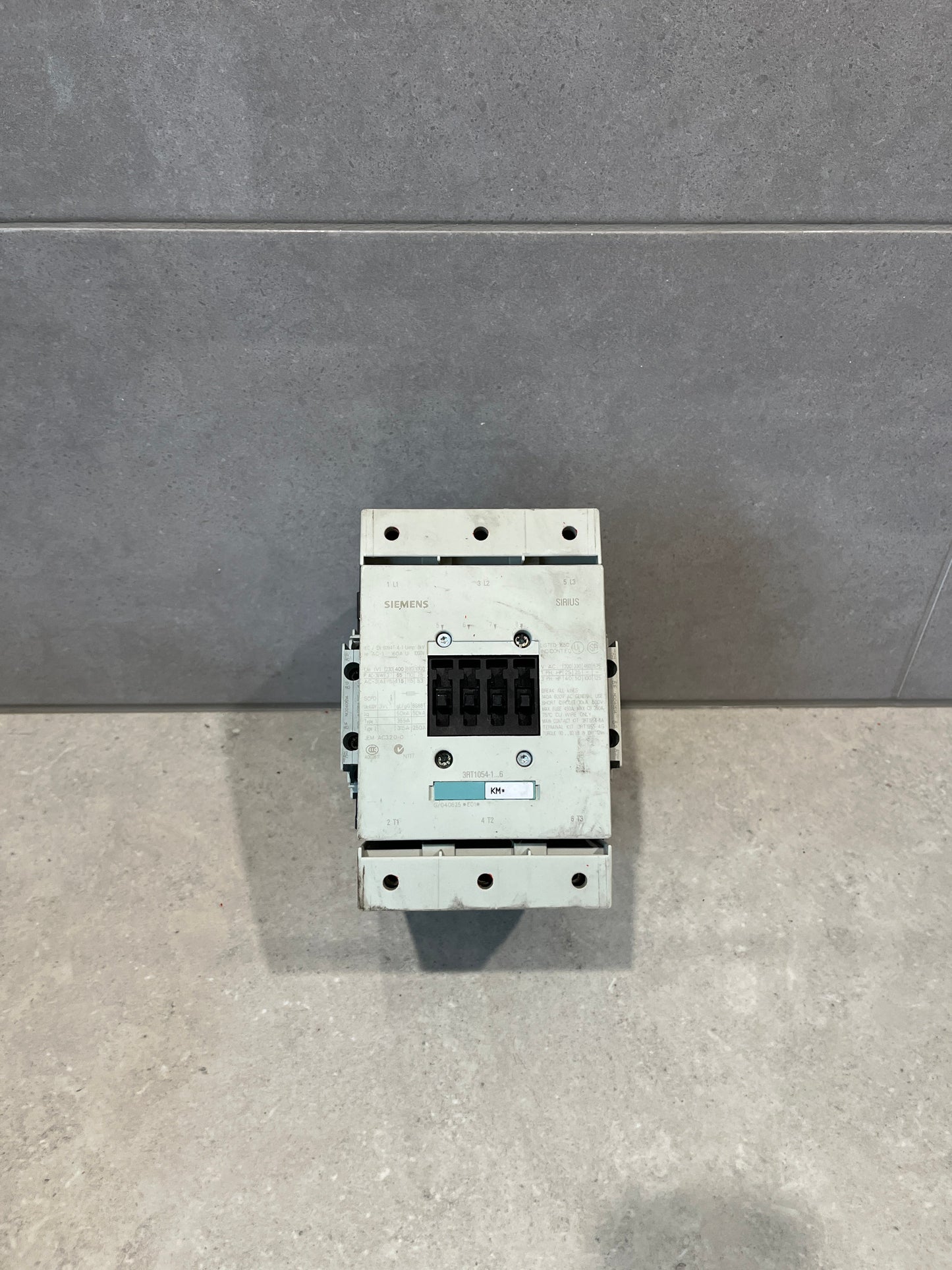

Siemens 3RT1054-1AF36 Contactor 55KW 400VAC

This contactor is a robust and efficient industrial solution designed to manage electrical circuits with precision. Part of the SIRIUS With dimensions of 120mm in width and 170mm in depth, it is suitable for surface mounting and provides excellent performance across various conditions.

• Supports a control voltage range of 110 to 127V AC/DC
• Compact design with a mounting width of 120mm
• High operational reliability with 10 million mechanical operating cycles
• Offers 2 normally open and 2 normally closed auxiliary contacts
• Compatible with screw terminal connections for secure installations
• Enhanced surge voltage resistance rated at 8kV for durability

• Suitable for motor control in industrial machinery
• Ideal for automation in manufacturing processes
• Utilised in HVAC systems for efficient operation
• Effective in control panels for streamlined electrical management

The contactor is designed for surface mounting, allowing easy installation on various surfaces. It can be mounted vertically and is adjustable within specified angles for optimal positioning.

It can manage a power rating of up to 55kW, making it ideal for controlling 3-phase motors and ensuring reliable operation in demanding applications.
