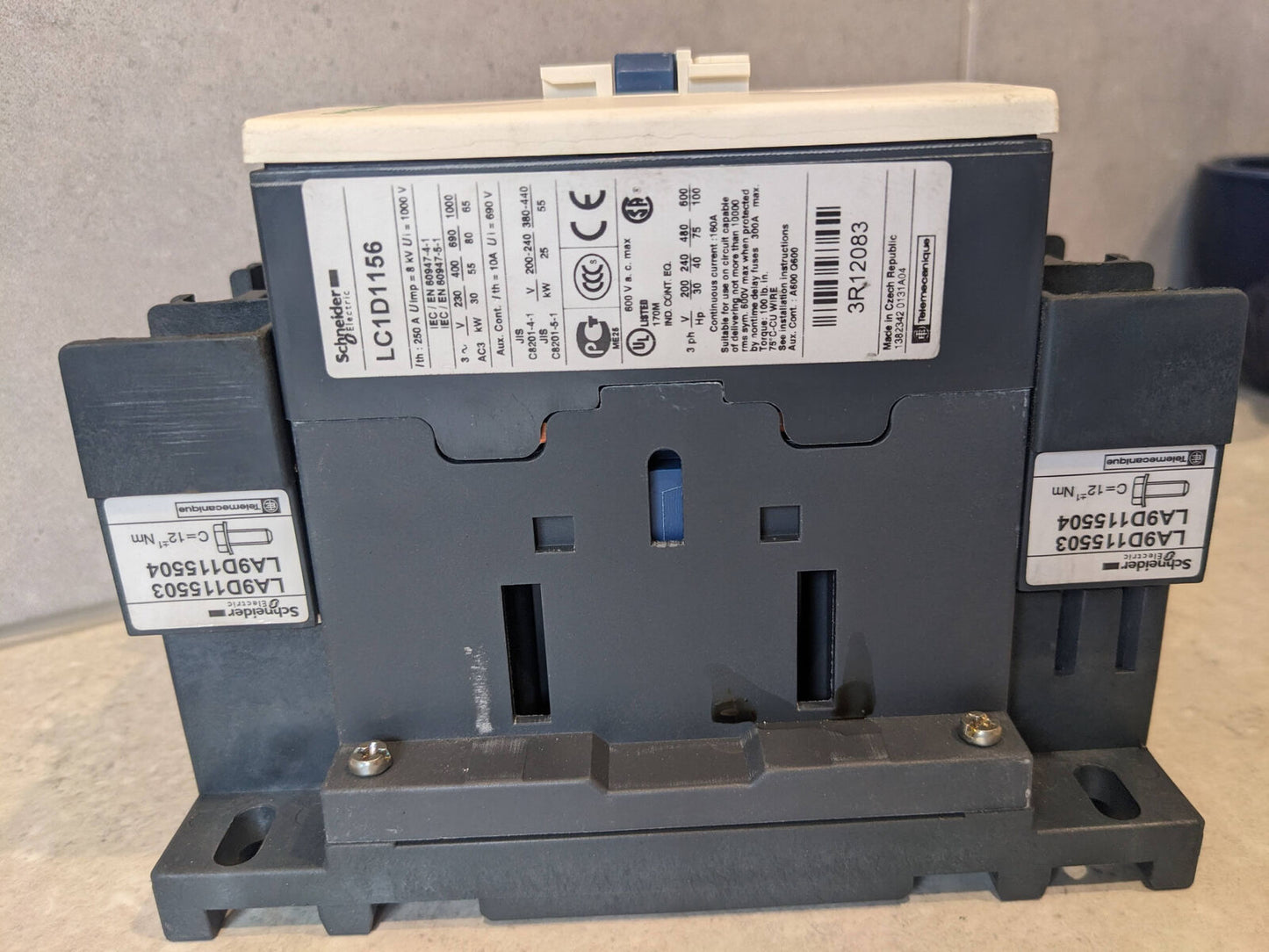

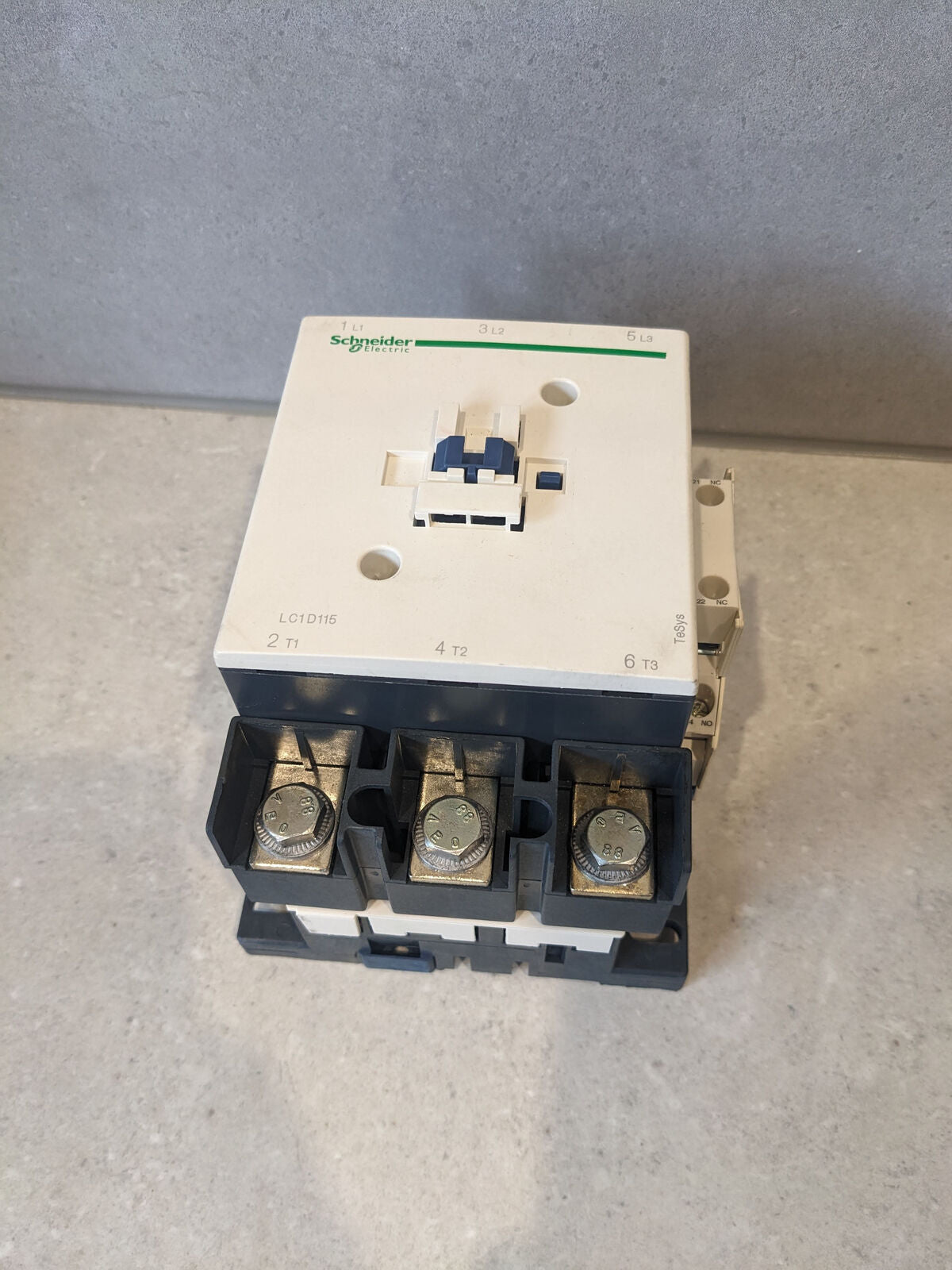

Schneider Electric LC1D1156 160A 3 Phase Contactor 240V Coil
Schneider Electric LC1D1156 160A 3 Phase Contactor 240V Coil
Couldn't load pickup availability
Welcome to Adelaide Qualified Electrical Salvage. We source our products from decommissioned projects, surplus stock, or refurbishments. We have a team of qualified electricians who complete all testing and repairs of the items listed.
All items you find in our store go through basic function testing and safety checks. Due to the technical nature of some equipment only basic testing can be done. All items come with a DOA return policy. – Please see our Returns Policy
If you require any specific testing done to the item, please reach out to us and we will do our best to accommodate. Please note, any additional tests will come at additional cost and we are not a NATA certified lab.
| Manufacturer: | Schneider Electric |
| Item Type: | Contactor |
| Condition Report | Used, In good physical condition |
| Electrical Supply | 3 Phase 440V |
| Continuous Current Rating | 160A |
| Coil Voltage | 240V |
Testing
Each item gets tested prior to being shipped out and will be labelled appropriately with specific test values.
Please note that not all these tests will apply to this particular item.
| TEST | TEST POINTS | PASS VALUE |
| Insulation Resistance | L1↔L2 ↔ L3↔N↔E or; U1↔V1 ↔ W1↔N↔E (Any Active conductor and Earth) | >1MΩ |
| Earthing Continuity | Earth Terminal↔ External Conductive Parts (Class I) | <0.5 Ω |
| Contact Continuity (Switches, Circuit Breakers, Relays, Contactors ETC) | As per wiring Diagram | ≈ 0 Ω or Manufacturer Specification |
| Contactor Energize | With Rated coil voltage, confirm contactor pulls in correctly and holds. | YES/NO |
| Motor Winding Resistance | U1-U2, V1-V2, W1-W2 | Manufacturer |
| Motor Unloaded Running Current | L1, L2, L3 Amps | Manufacturer |
| Device Turn On | Apply Rated Voltage, Confirm device turns on. | YES/NO |
| Device Communicates | If programming required, and software available test if device can be accessed via serial or USB etc. | YES/NO +Details |
| Manufacturers Instructions/Datasheet Included? | Provide PDF on Website or paper copy where Surplus Item | YES/NO |
| Function Test | Any other applicable tests | YES/NO |
