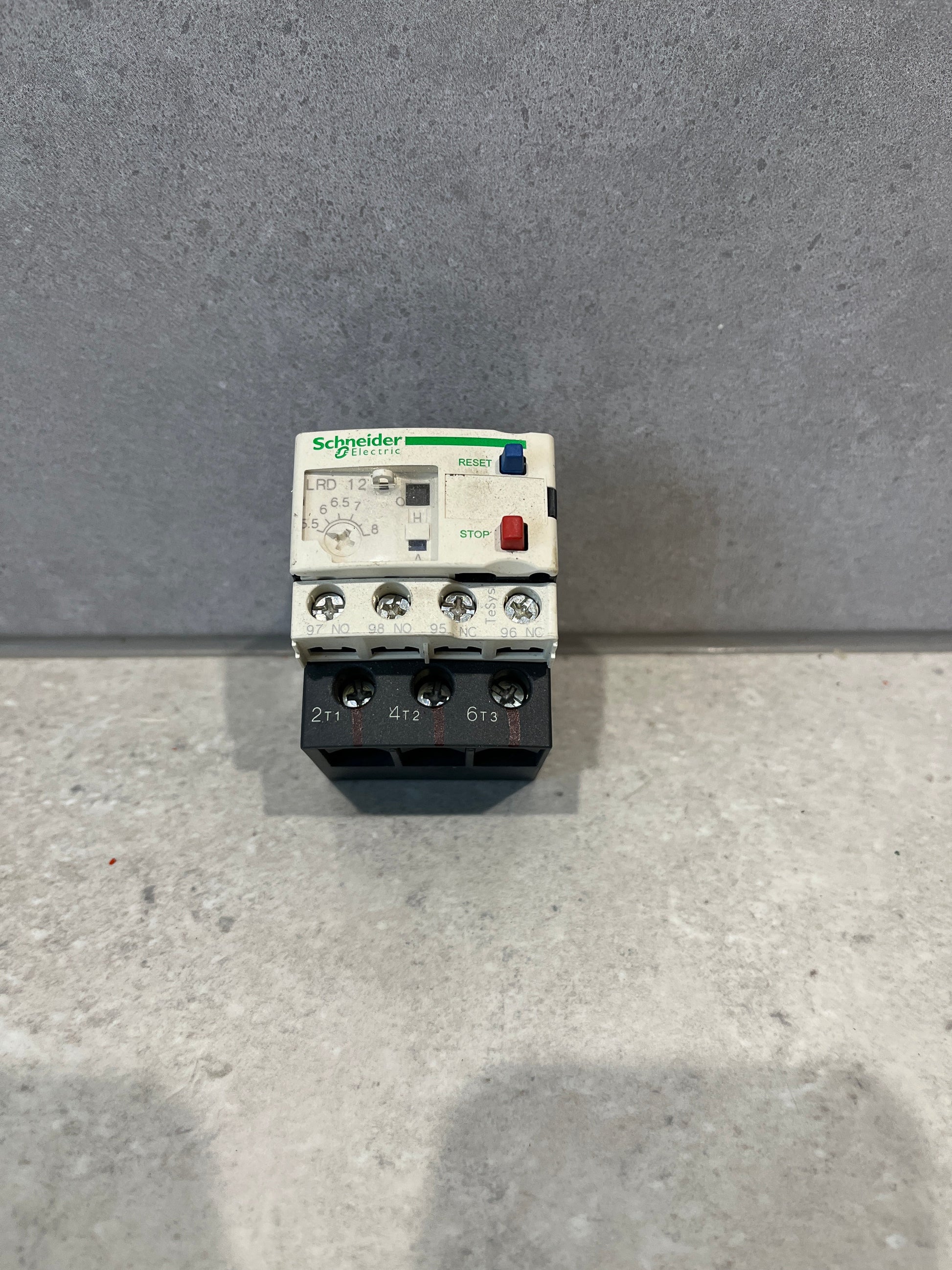

Schneider Electric LRD12 Thermal Overload Relay

Used. Decomissioned from a site.

FLC Motor Rating    5.5 → 8 A

Contact Current Rating    8 A

Range    TeSys

Pole Configuration    3P

Series    LRD

Mounting Style    Direct Contactor

Normal State Configuration    NO/NC

Reset Method    Automatic, Manual

Terminal Type    Screw

Width    45mm

Number Of Auxiliary Contacts    2

Depth    70mm

Length    66mm

Minimum Operating Temperature    -20°C

Maximum Operating Temperature    +60°C

Operating Temperature Range    -20 → +60 °C

Better World Verification    Green Premium

Better World Product    Yes

Contact Voltage Rating    690 V ac

Supply Voltage    690 V
