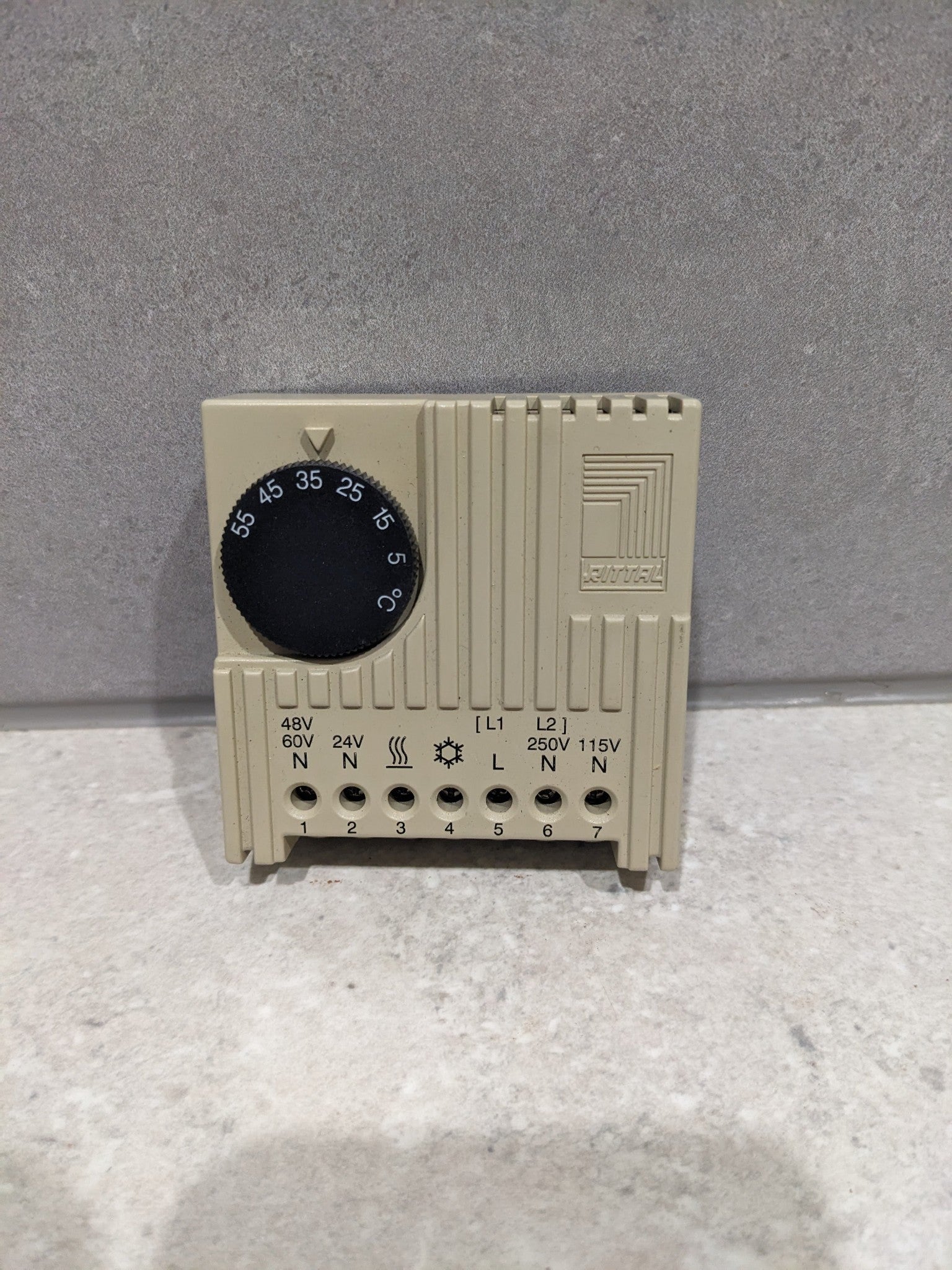

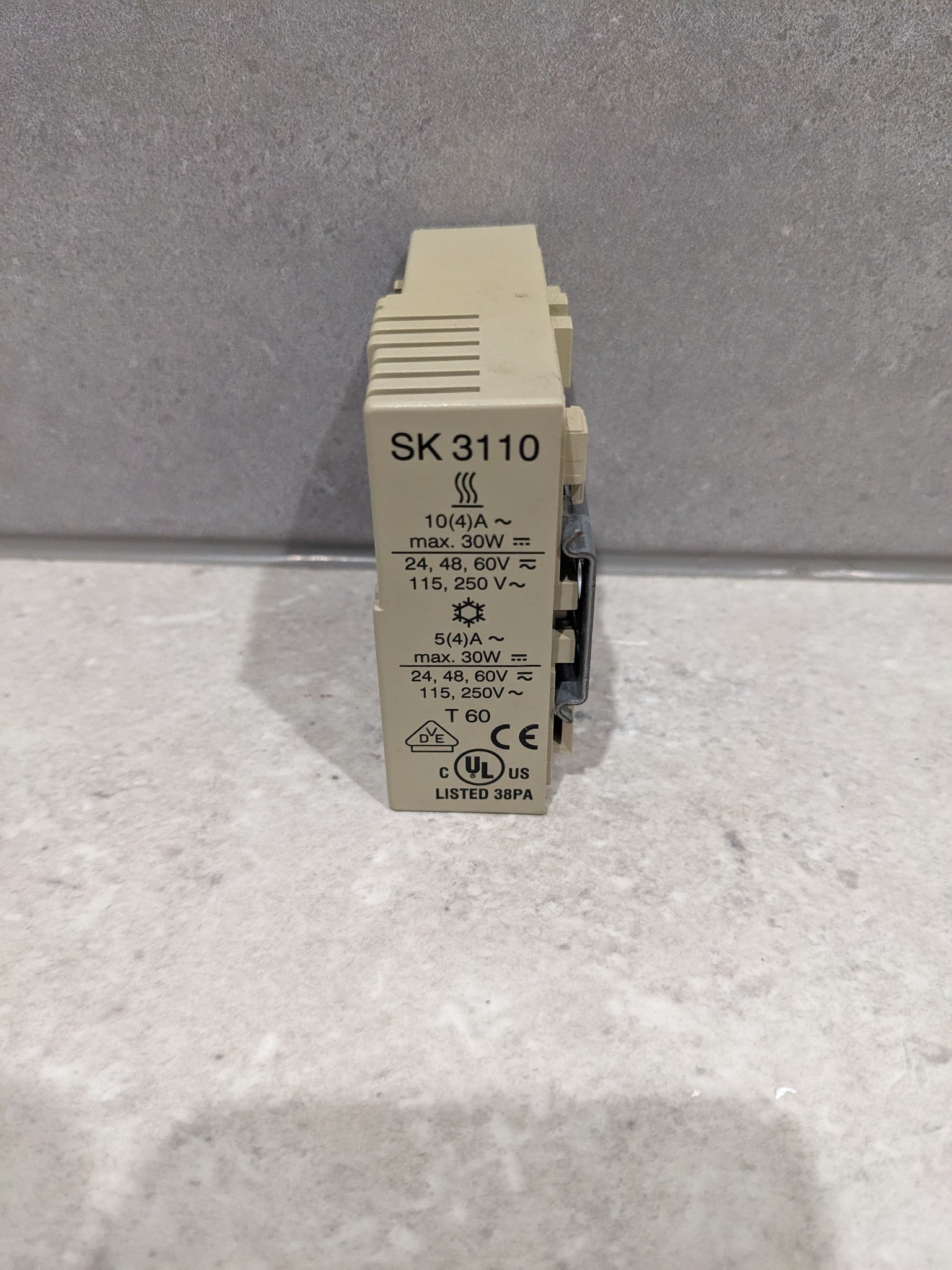

RITTAL SK3110 Thermostat Enclosure internal thermostat SK 3110.000

CONDITION

Item is used and removed from a decommissioned project. Still working upon removal

TIPS

• Must be installed by a licensed Electrician

TESTS COMPLETED:  B, C, F

Features:

RITTAL SK3110 Thermostat Enclosure internal thermostat SK 3110.000

• Particularly suitable for controlling fans, heaters and heat exchangers, this thermostat can also be used as a signal generator for monitoring the enclosure internal temperature.

Specifications:

• Bi-metal controller as a temperature-sensitive element with thermal feedback
• Contact population: Single-pole change-over contact as a quick-break contact
• Permissible contact load: Category 5 – 3 (heating) AC 10 (4) A (inductive load at cos φ = 0.6)/category 5- 4 (cooling): AC 5 (4) A (inductive load at cos φ = 0.6)/DC = max. 30 W
• Switching difference: approx. 1 K ± 0.8 K
• Width: 71 mm
• Height: 71 mm
• Depth: 33.5 mm
• Setting range 5 °C...60 °C
• Rated operating voltage
• 24 V - 230 V, 1~
• 24 V - 60 V (DC)
