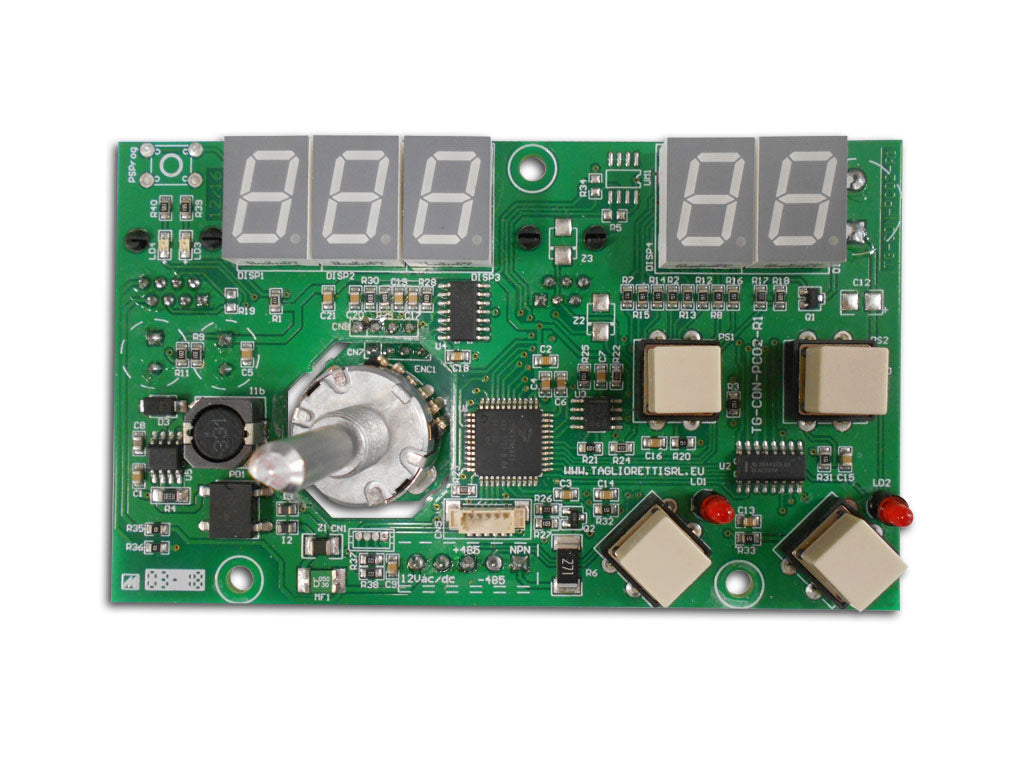

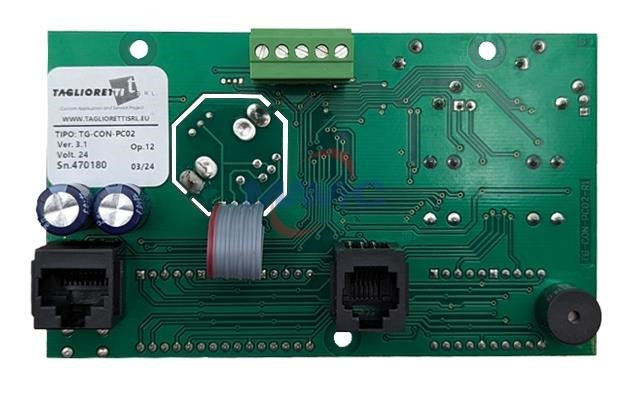

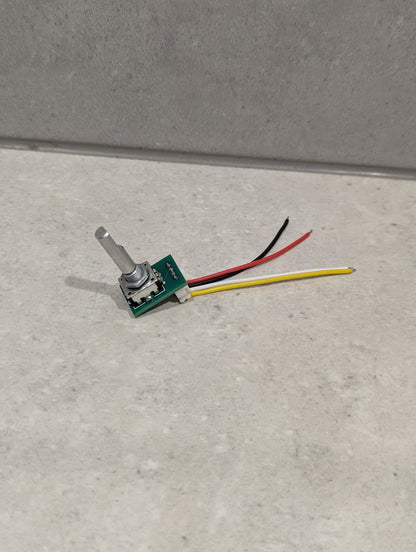

Brand New Speed control dial for Taglioretti TG-CON-PC02 Control board. The Taglioretti is a speed control and motor display board for a lot of food processing equipment manufactured in Italy.

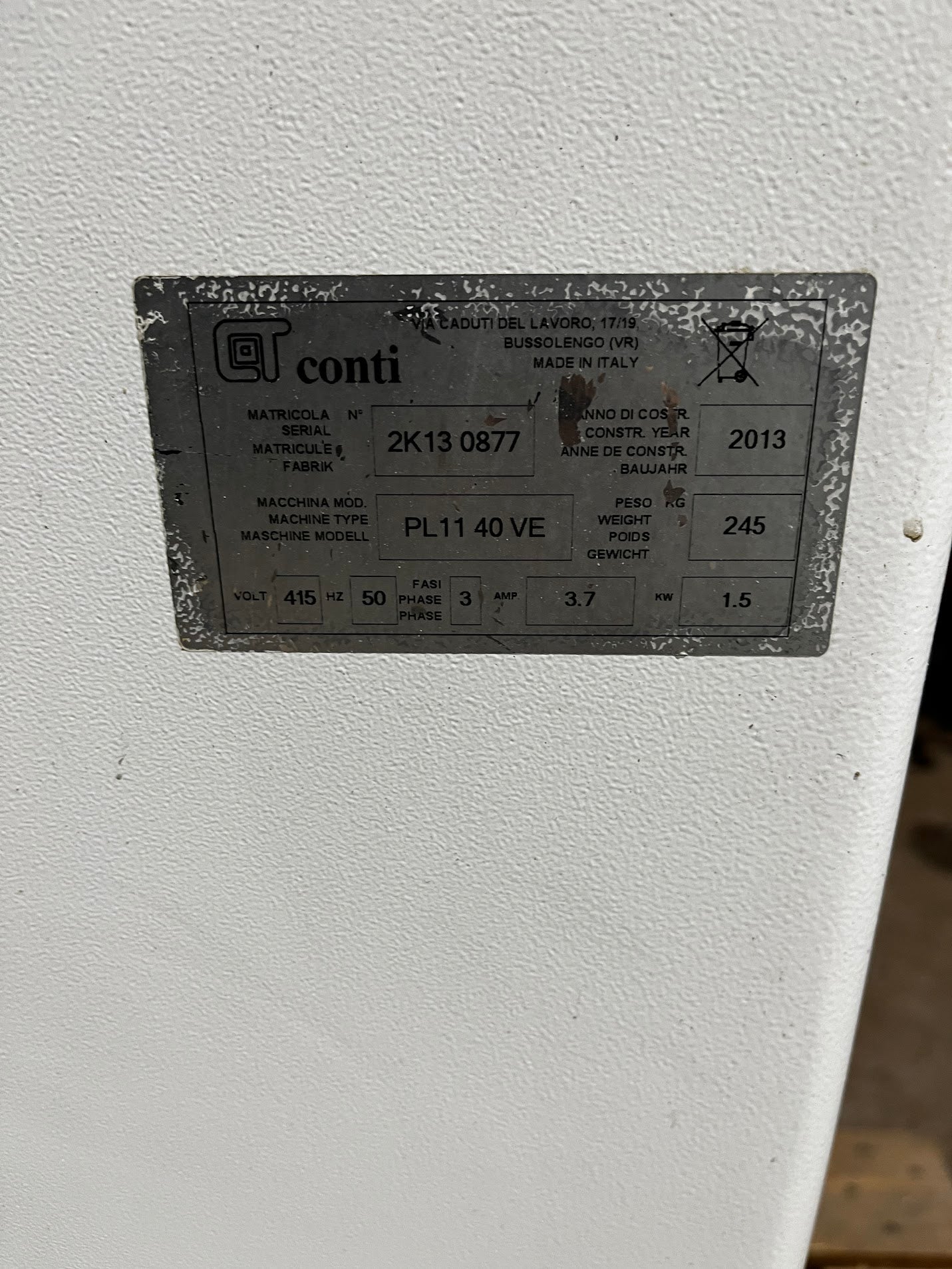

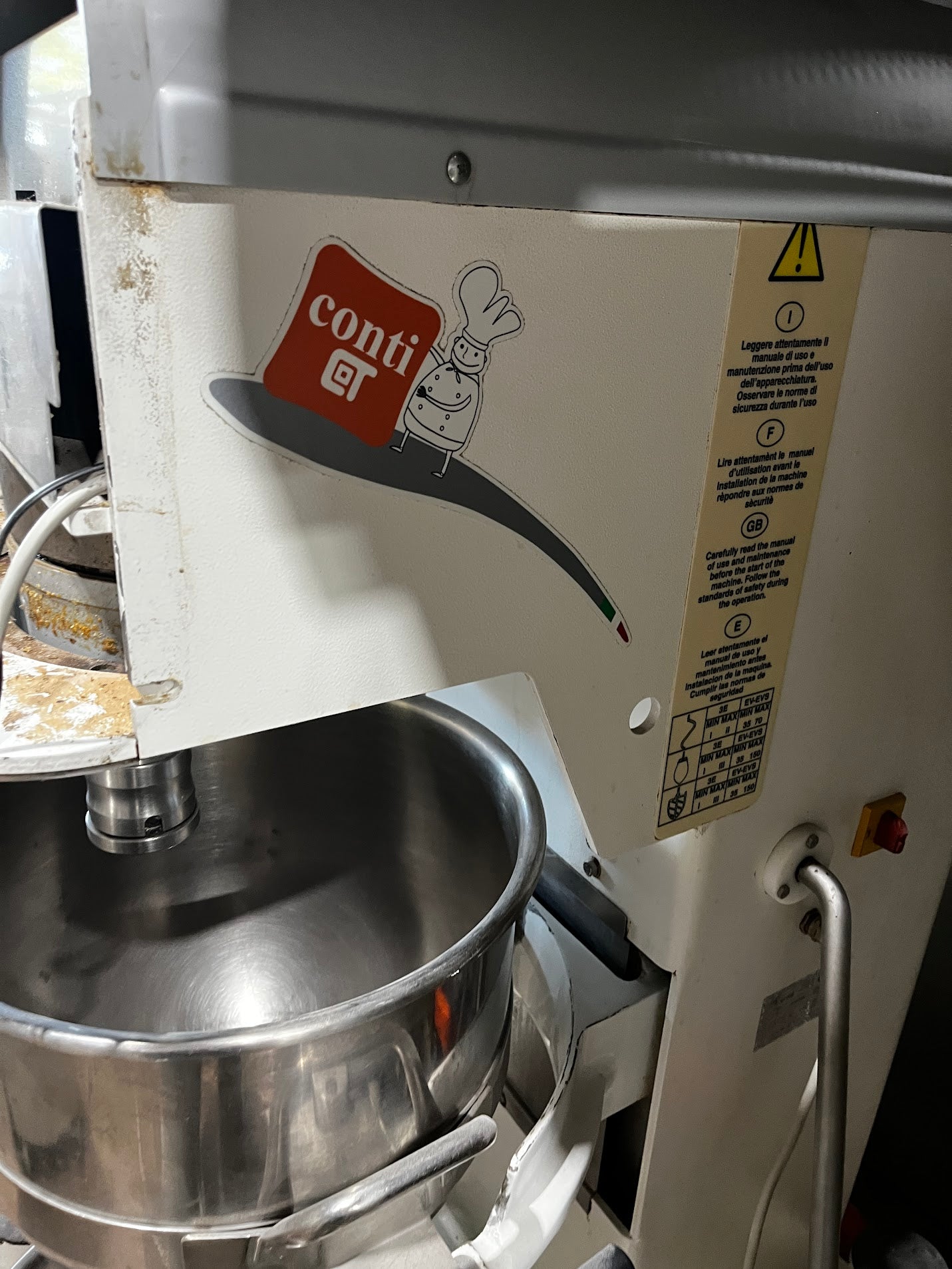

This particular case was from a Conti PL11 40VE planetary mixer. If you damage the encoder that controls the speed via the knob on the front of the machine, you cant buy the encoder separately. We have researched and found a suitable replacement.
This saves you from having to buy a complete replacement control board from Italy.

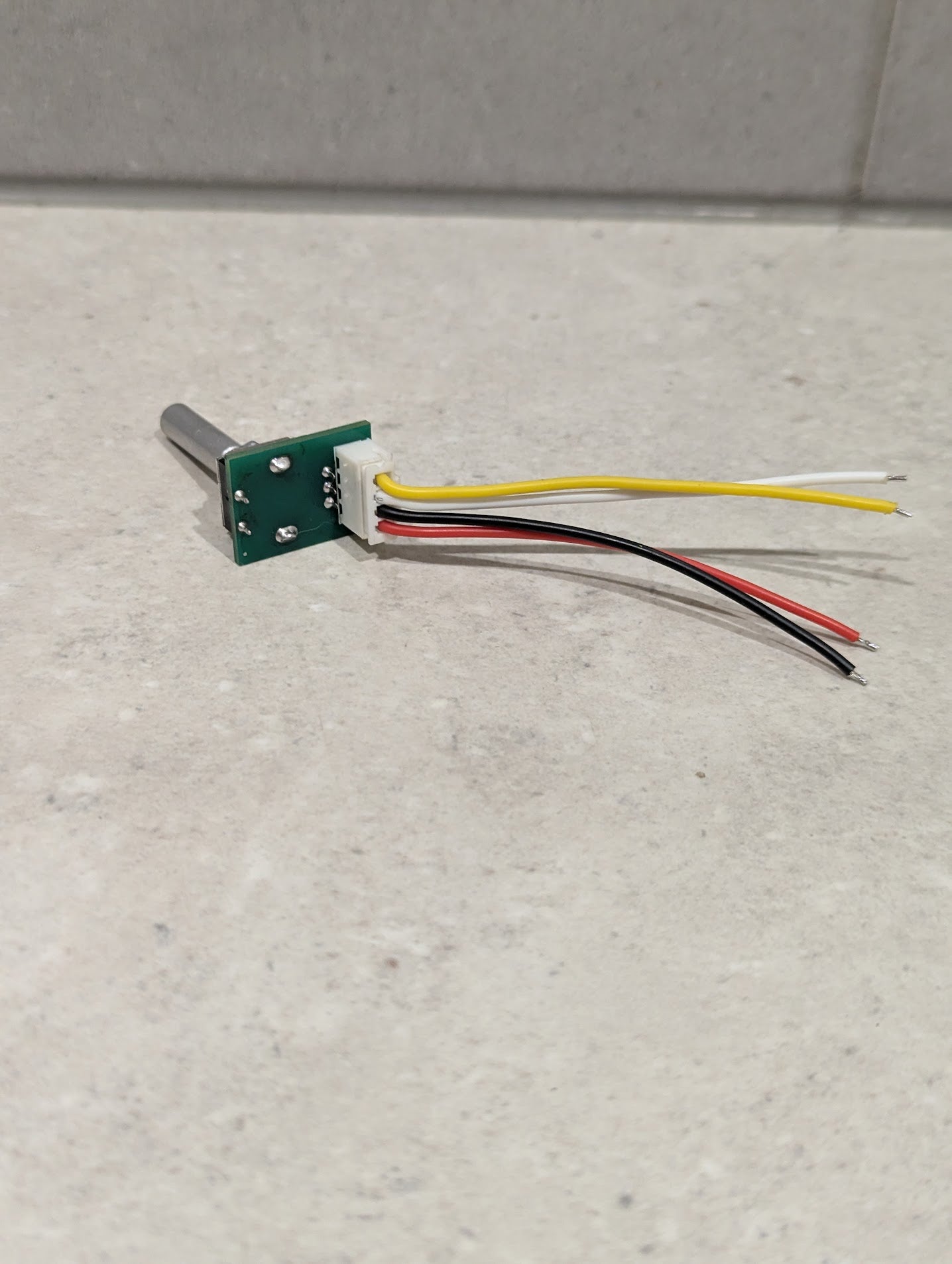

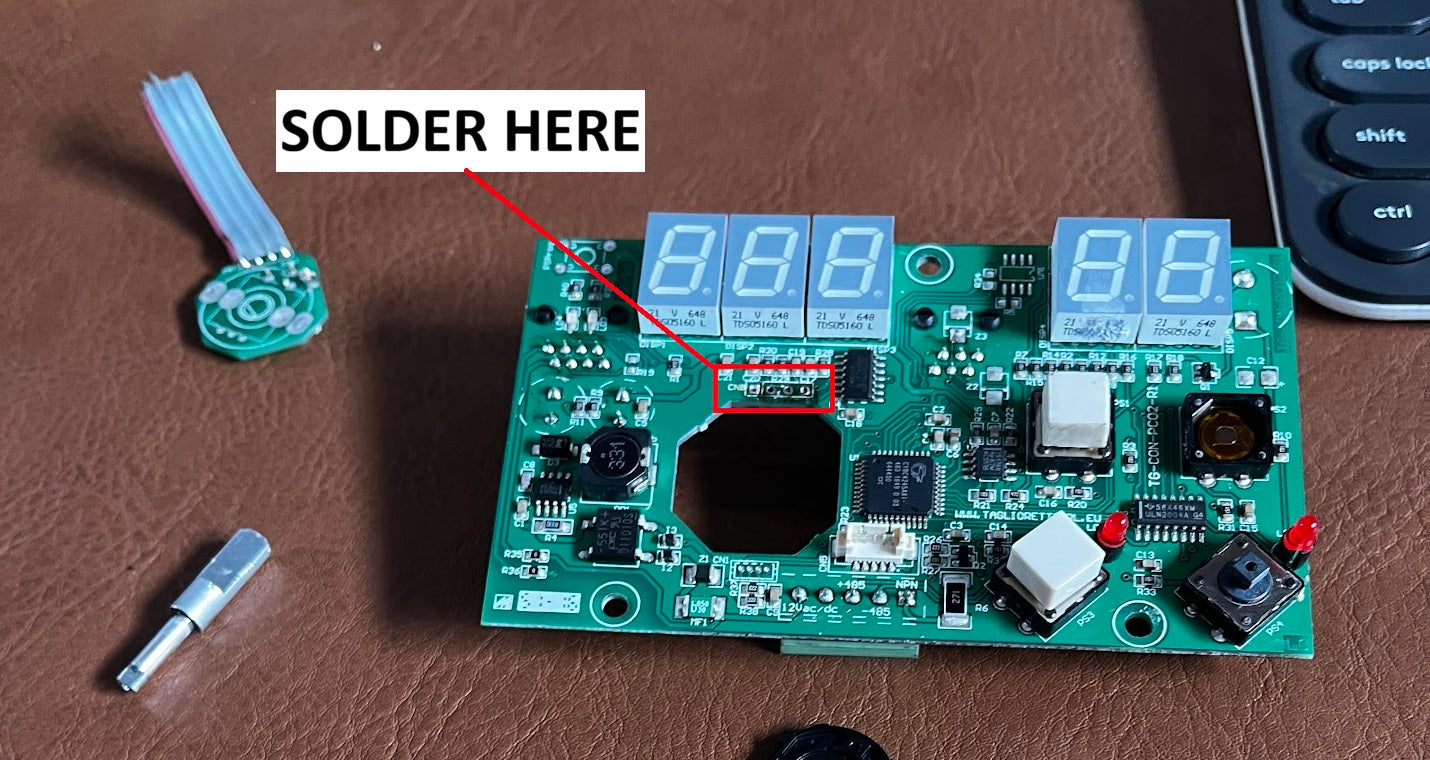

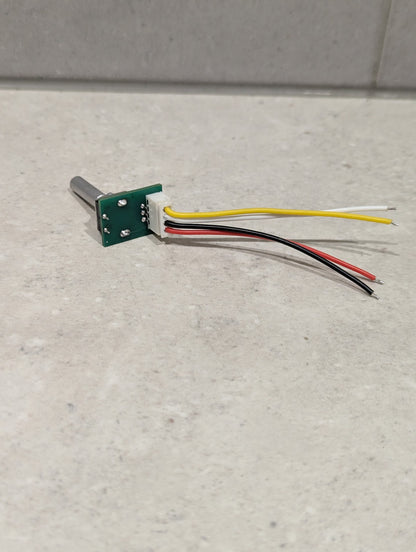

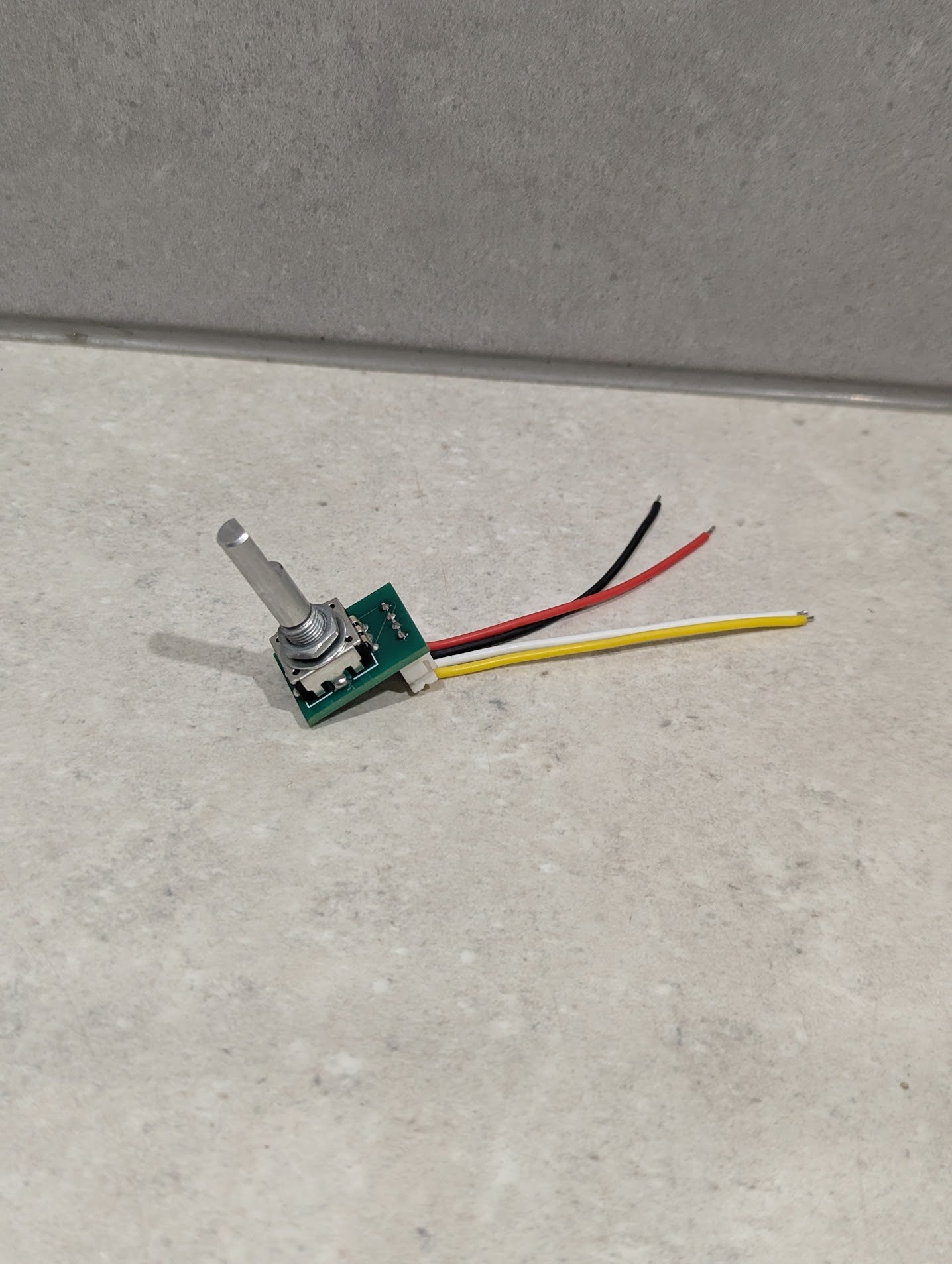

To make installation easier, we have designed a custom circuit board so the pins are connected from the encoder to a JST-XH connector. We supply a 4 pin JST lead which you need to solder to CN8.
Then you can re-install the encoder and control board into the front panel using the supplied washer and nut. The existing control knob should fit perfectly onto the replacement encoder.
Please note - the TG-CON-PC02 control board is not included. The replacement board +encoder comes with a 2 year manufacturer warranty. It does not cover physical damage to the unit.
