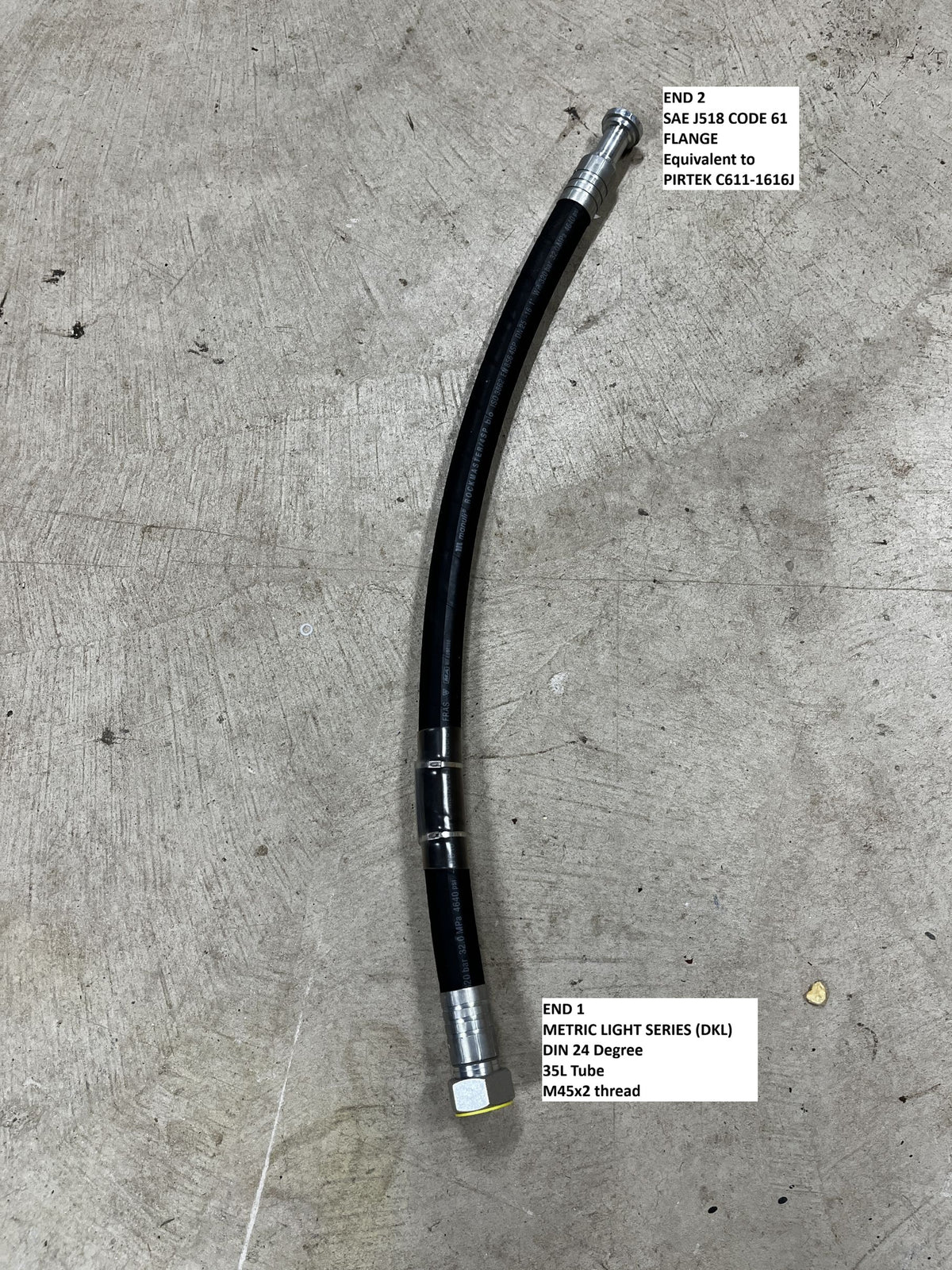

Manuli DN25 4SP 320Bar Hydraulic Hose – SAE61 x M45x2 35L DIN24

Specifications

• Manufacturer: HDS Hoses

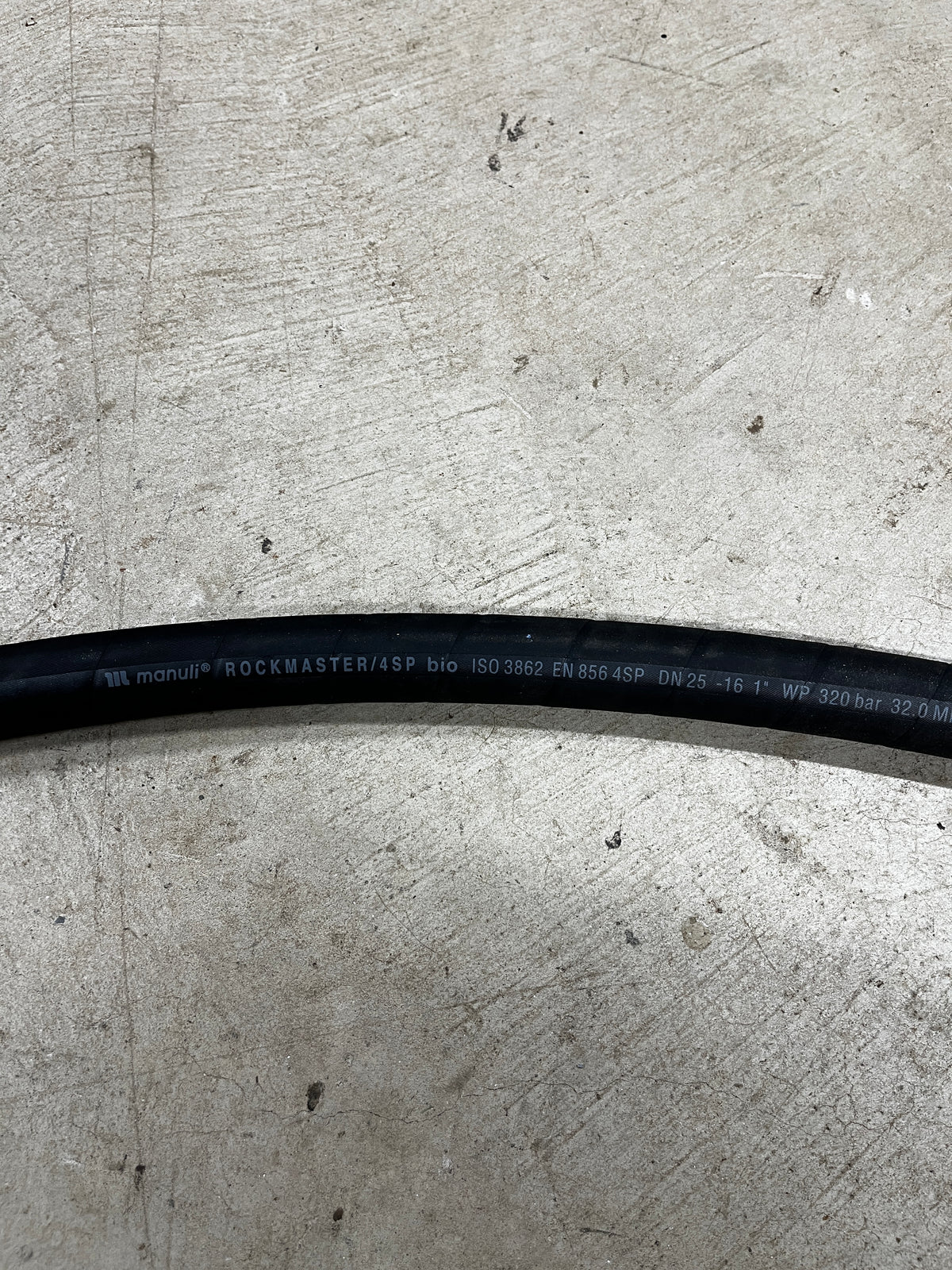

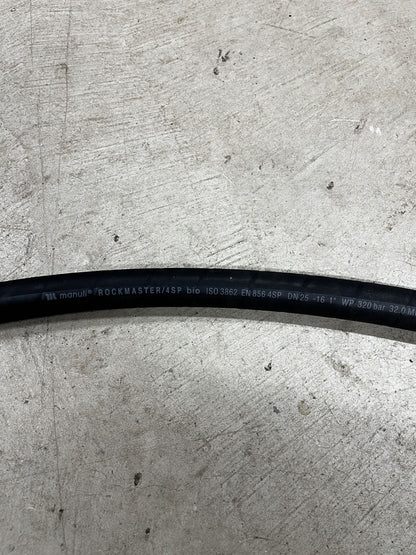

• Hose Type: Manuli RockMaster 4SP

• Hose Size: DN25 (1" / Dash 16)

• Hose Length: 1 Metre

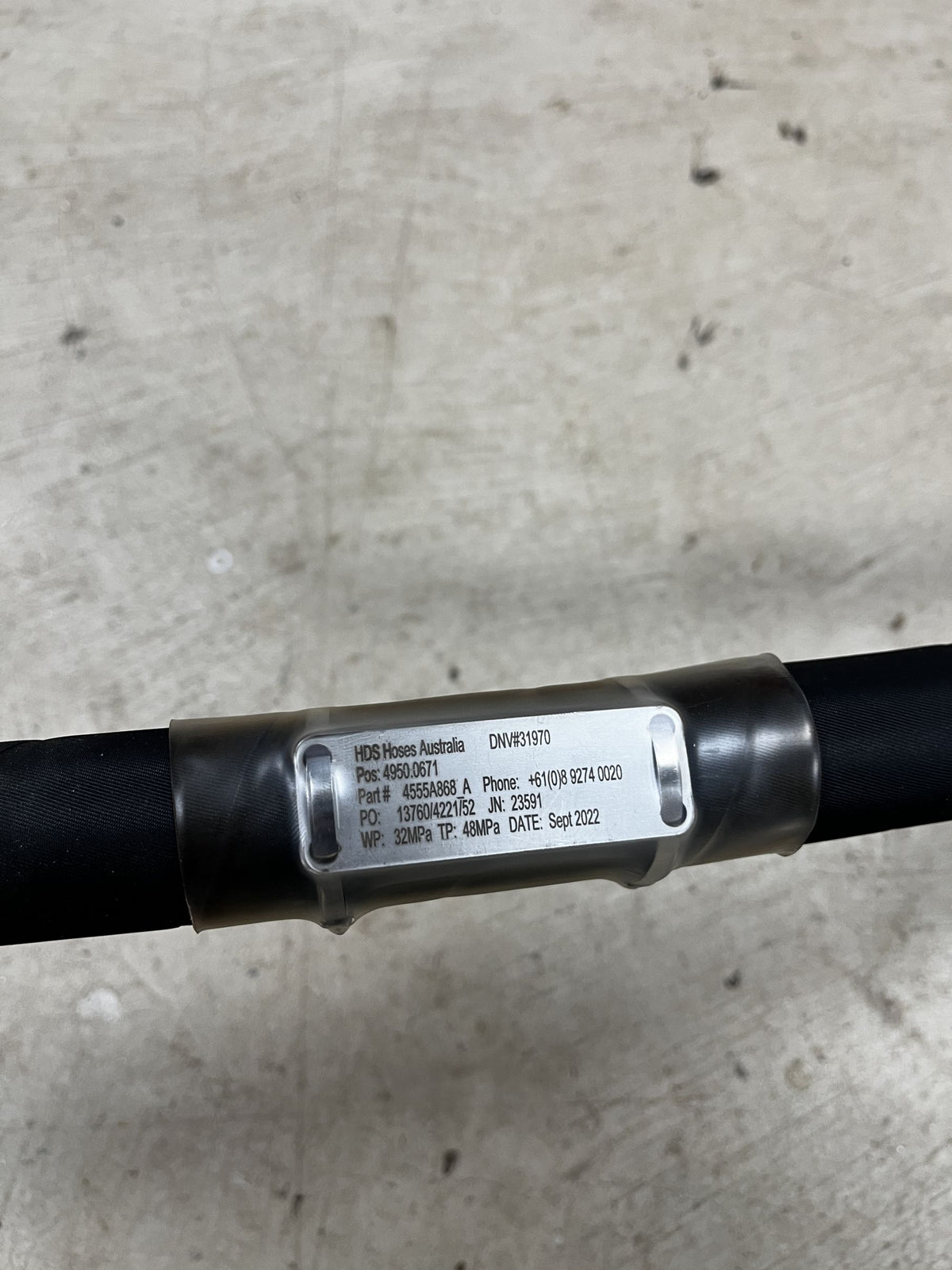

• Working Pressure: 320 Bar (32 MPa / 4640 PSI)

• Test Pressure: 480 Bar (48 MPa)

• Construction: 4SP High Pressure Hydraulic Hose Assembly

Fittings

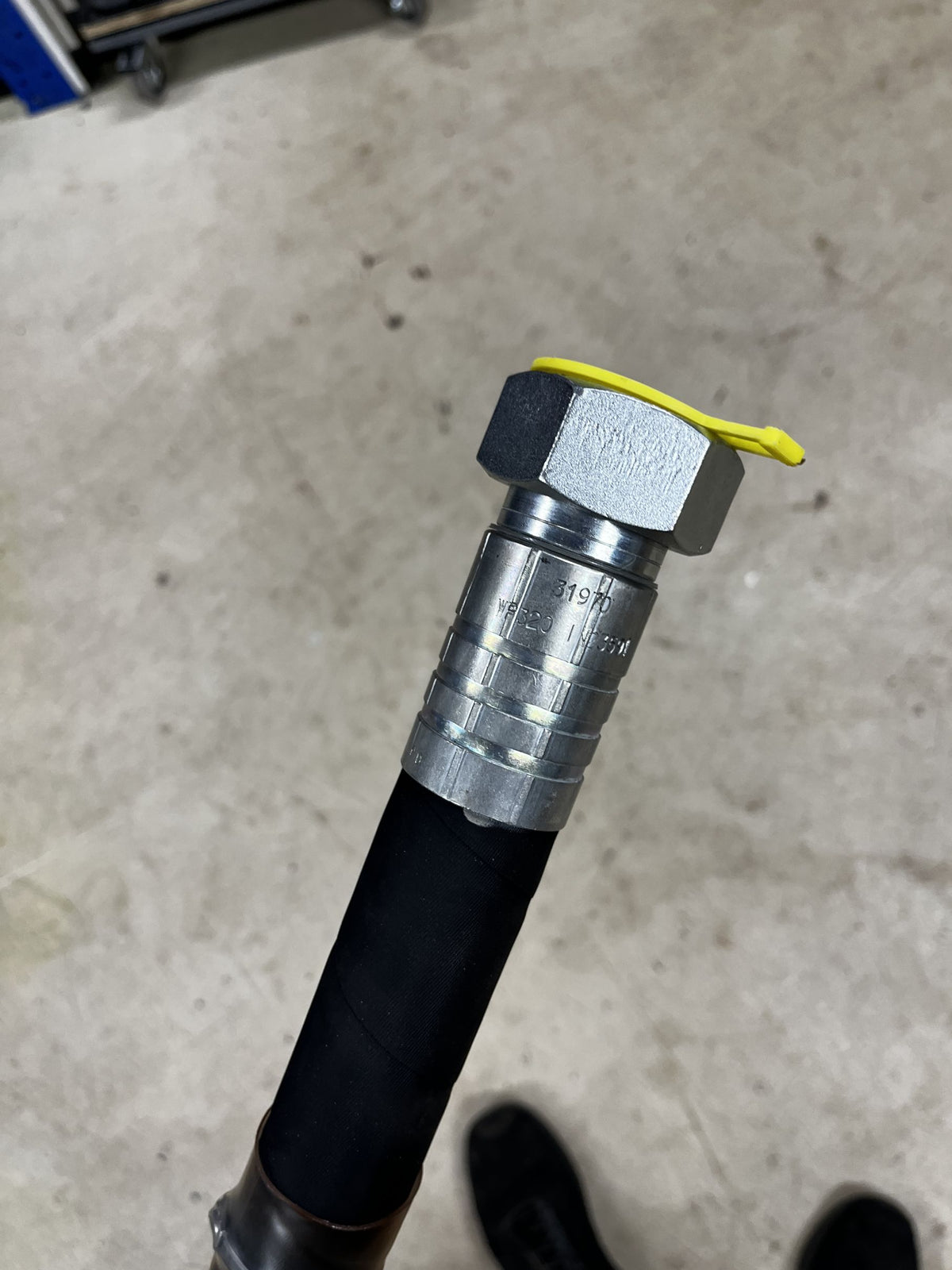

End 1:

• DIN 24° Female Swivel

• Metric Light Series (DKL)

• M45 x 2 Thread

• 35L Tube Size

• Stamped: L35

End 2:

• SAE J518 Code 61 Flange

• 1" Flange Size

• Straight Configuration

• 4-Bolt Clamp Style (Clamp Not Included)

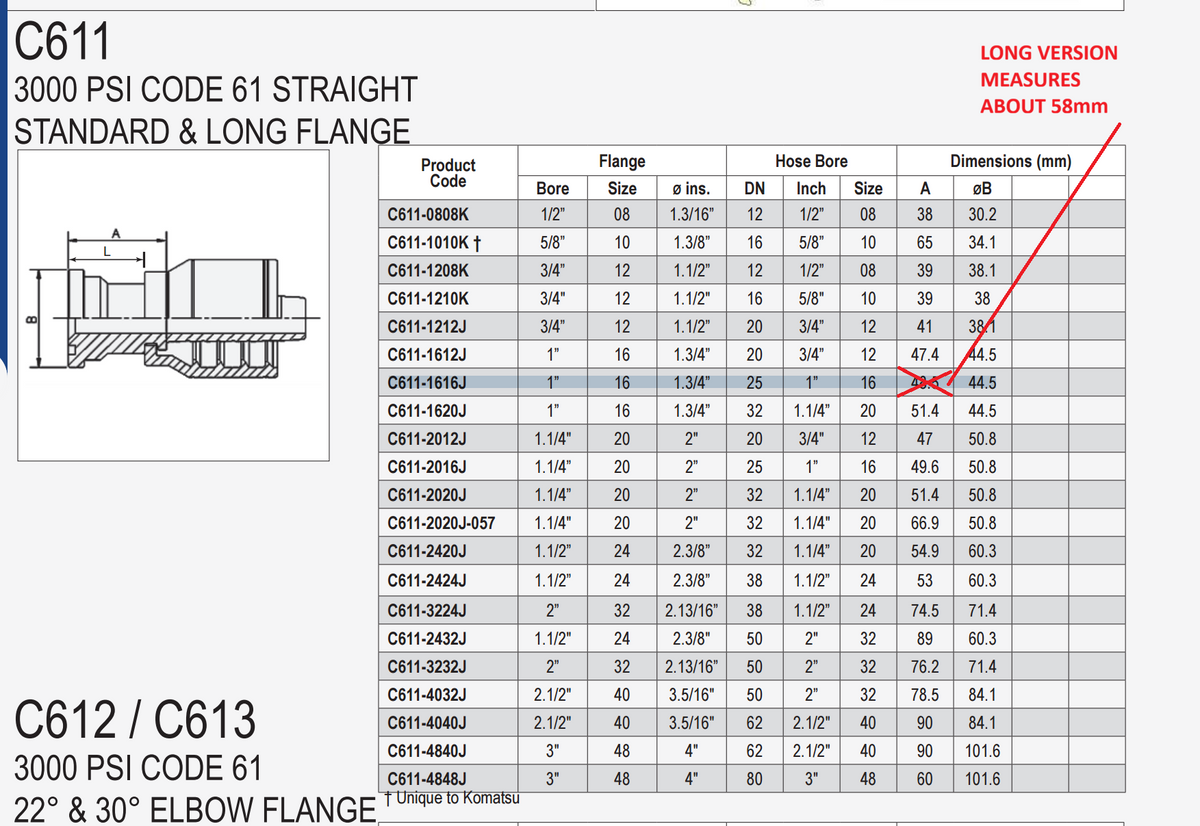

• Equivalent To: C611-1616J

Additional Notes

• 24° Cone Seat (DIN 2353 / ISO 8434-1)

• SAE Code 61 = 3000 PSI Flange Pattern

• Suits 1" (DN25 / Dash 16) Hydraulic Systems

• Heavy Duty 4SP Construction – Suitable For High Pressure Applications
