Phoenix Contact | 1437122 | Circular Connector, 12 Contacts, Panel Mount, M12
Phoenix Contact | 1437122 | Circular Connector, 12 Contacts, Panel Mount, M12
Regular price
$30.00
Regular price
Sale price
$30.00
Unit price
per
Couldn't load pickup availability
CONDITION
Item is in great condition, showing no obvious damage or defect
TIPS
-
Comes with Pre terminated leads in all 12 of the positions potentially saving money through labor and materials for the right project
Lead is approximately 500mm from flange to ferrule end.

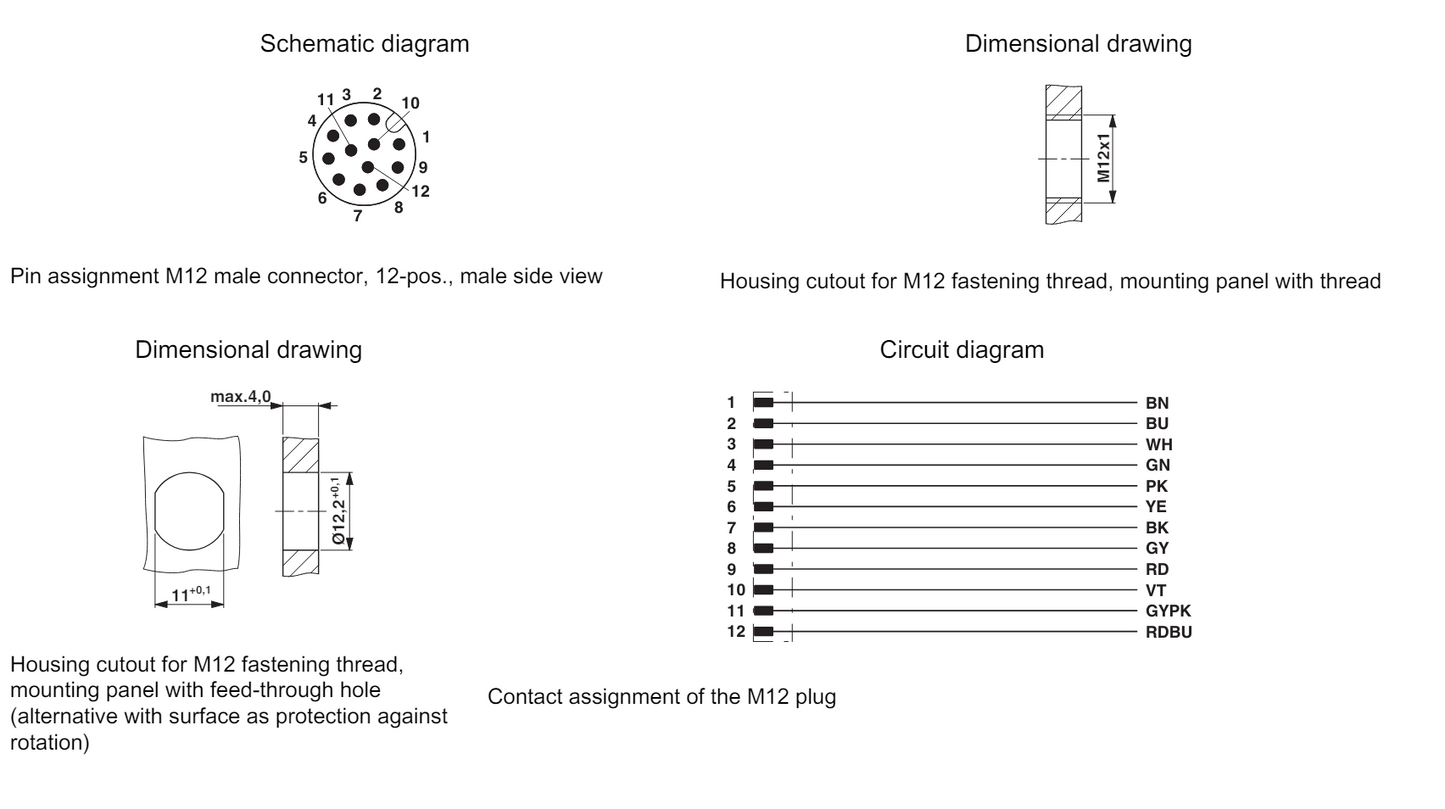

See below image for pinouts
Has male pins

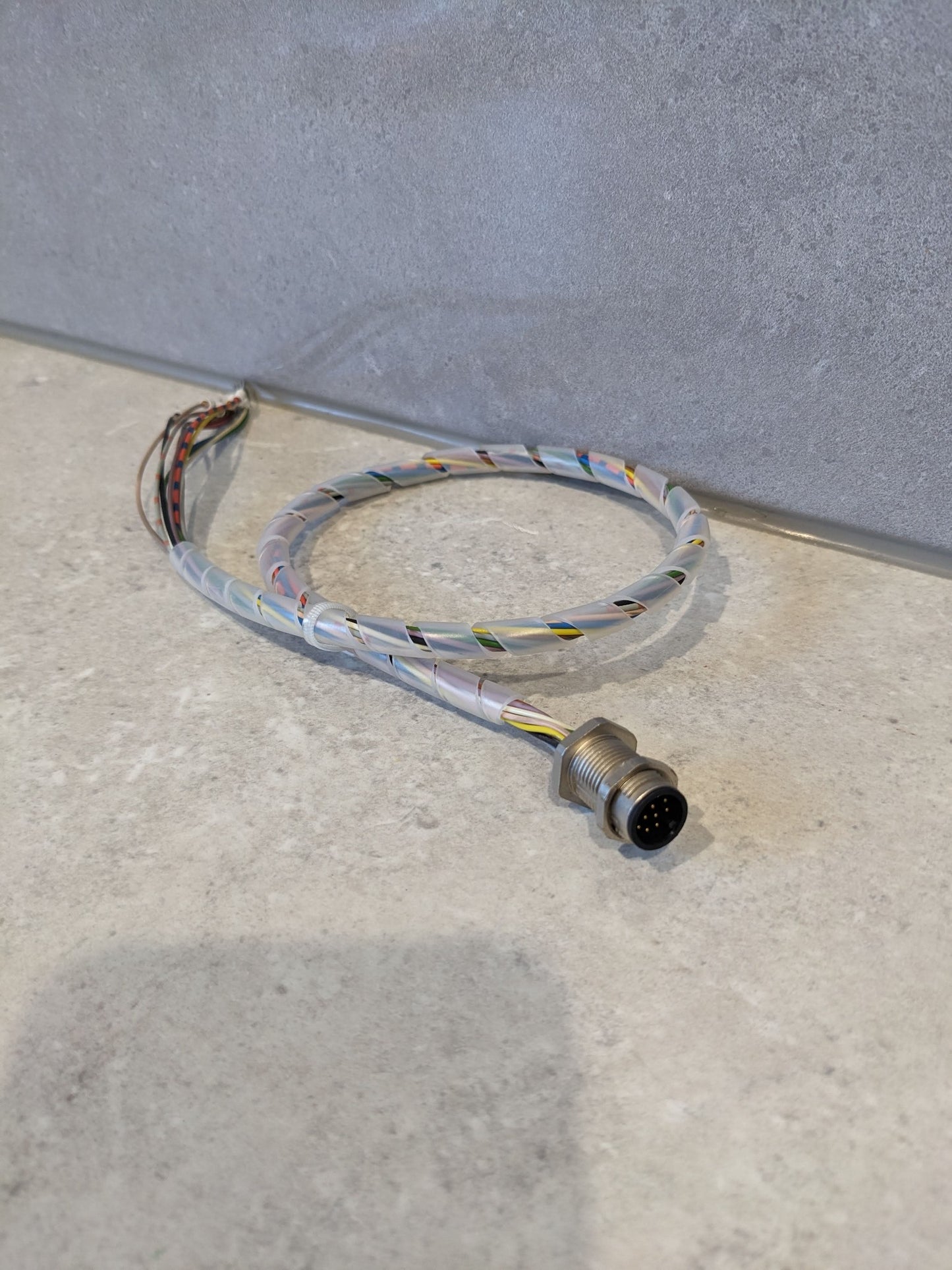

Comes with Spiral wrap to keep cables neat and provide basic protection
These plugs have an RRP of over $80 per piece,
TESTS COMPLETED:
Features:

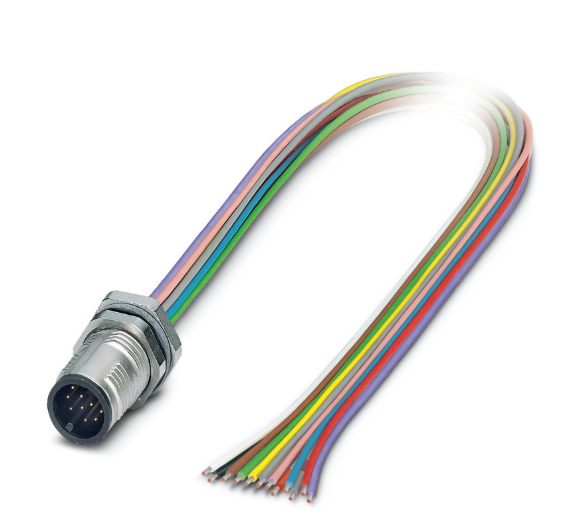

The Phoenix Contact has sensor/actuator flush-type plug with 12 numbers of positions. The length of the cable is 0.5 m and the rated current at 40°C is 1.5 A.
Pre-assembled with litz wires for immediate use
Sealed on the litz wire side for optimum leak-tightness
Sealed on the litz wire side for optimum leak-tightness
Specifications:
| Number of Contacts | 12 |
| Mounting Type | Panel Mount |
| Connector Size | M12 |
| Plug/Socket | Plug |
| IP Rating | IP67 |
| Series | SACC |
| Coding | A |
