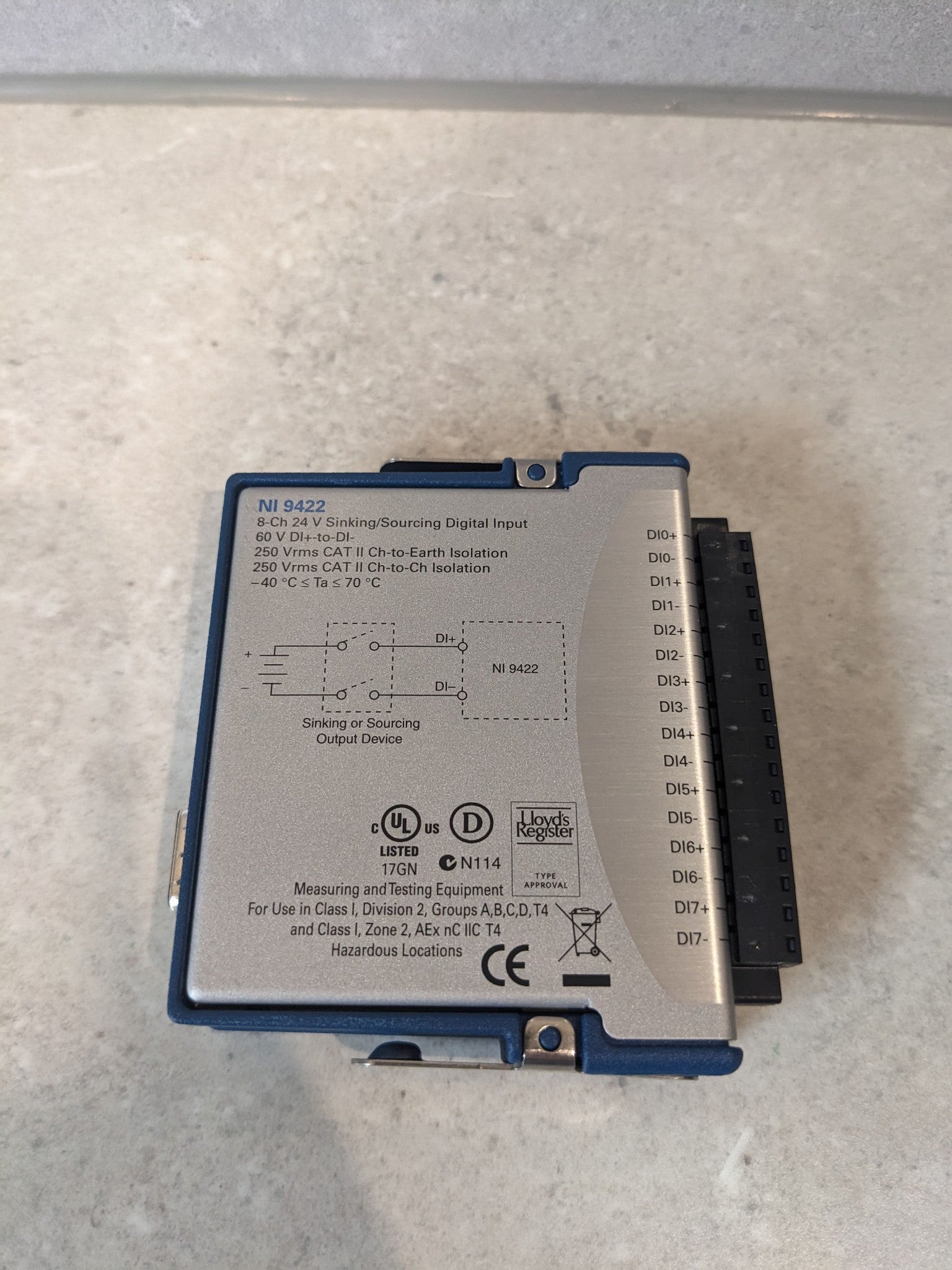

National Instruments NI-9422 8-Channel Digital Input Module

CONDITION

Item is in Near New Condition. Removed from a decommissioned project

TIPS

• Must be installed by a licensed technician

TESTS COMPLETED:  A,J

Features:

The National Instruments NI 9422 24 V to 60 V, 8 Channel (Sinking/Sourcing Input), 250 Microseconds C Series Digital Module works with industrial logic levels and signals to directly connect to a wide array of industrial switches, transducers, and devices. Each channel accommodates 24 V to 60 V digital input signals. The NI-9422 features channel-to-channel and channel-to-earth ground isolation for the highest level of safety for automotive and industrial environments The NI-9422 is a correlated digital module, so it can perform correlated operations, triggering, and synchronization.

Specifications:

• Number of Bidirectional Digital Channels: 0.
• Conformal Coated: No.
• Current Flow Direction: Sinking Input, Sourcing Input.
• Enclosed: Yes.
• Digital I/O Logic Levels: 24 V, 48 V.
• Digital I/O Isolation: 250 Vrms Ch-Ch Isolation.

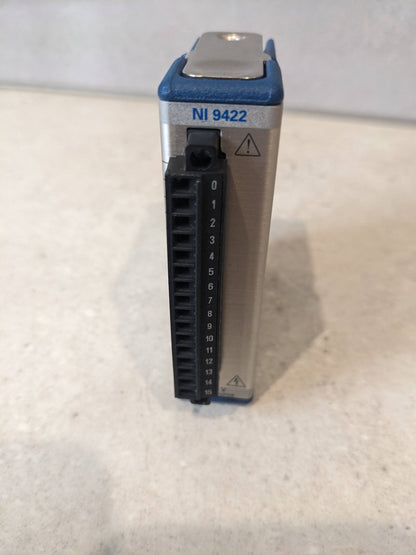

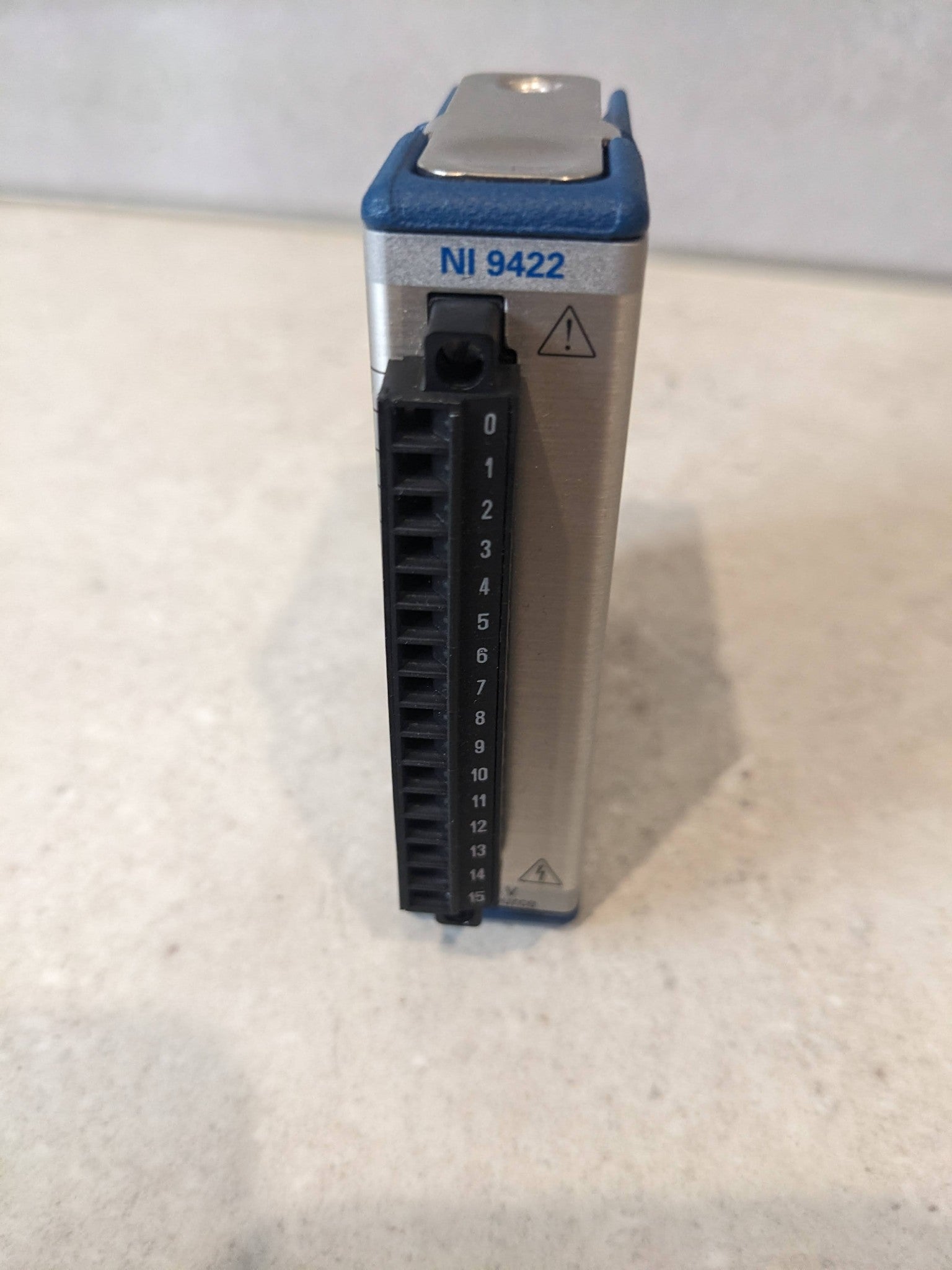

• Front Connection Type: Screw Terminal.
• Number of Digital Input Only Channels: 8.
