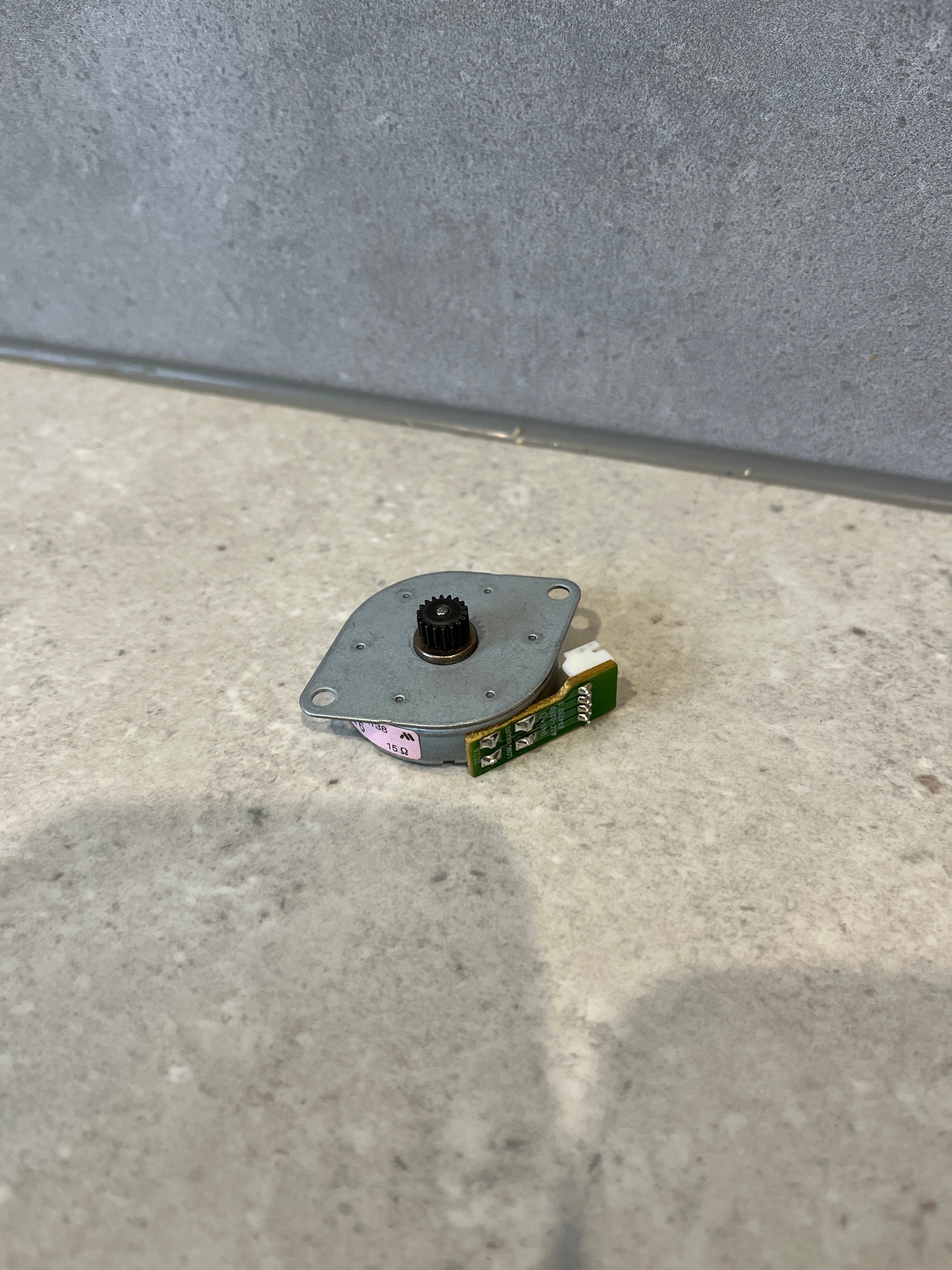

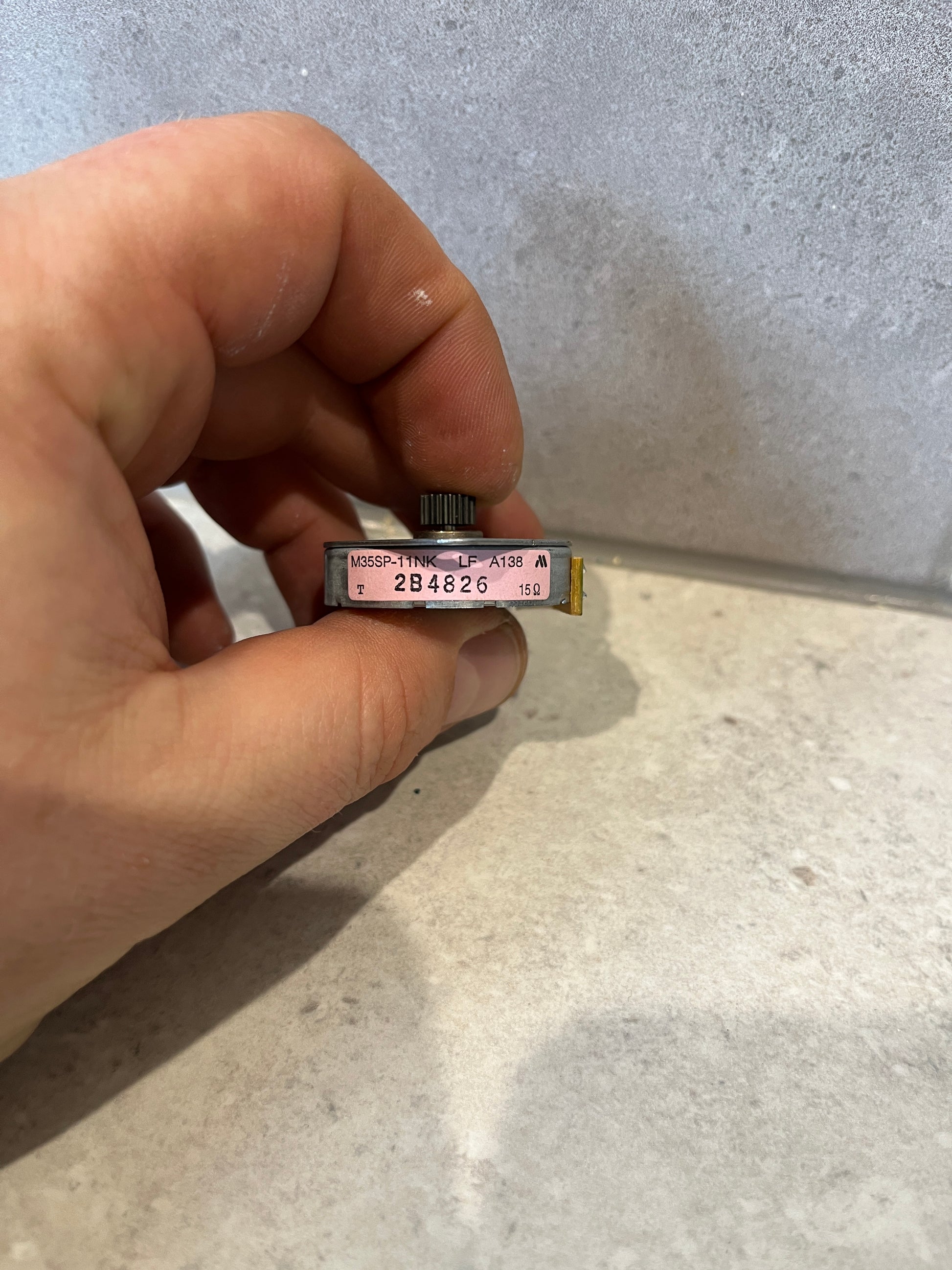

Mitsumi M35SP-11NK Stepper Motor

Thin, high resolution and high-output torque.
2. Superior running quietness and stability

Rated Voltage DC 24V
Working Voltage DC 21.6~26.4V
Rated Current/Phase 360mA(PEAK)
Coil DC Resistance 15 /phase±10%
Step Angle 3.75°/step
Drive Method Constant Current
Excitation Method 2-2 Phase excitation(Bipolar driving)
Insulation Class Class E insulation
Holding Torque 11.8mN·m(0.23A/phase)
Pull-out Torque 8.8mN·m/3,000pps
Pull-in Torque 11.3mN·m/500pps
Max. Pull-out Pulse Rate 4,300pps
Max. Pull-in Pulse Rate 1,000pps
