Feature
*Ultra -low cost, high accuracy meets most application requirements.
*Low -off working voltage, red low voltage 4.5V
*There is anti -connection protection, and it will not burn.
*No need to power the power supply, directly use the test voltage as the power supply
*Small, easy to carry and install.
Specification
Model: DSN-DVML-368-2
Measurement range: DC4.50-30.0V
High input: DC30.0V (the possibility of the input voltage higher than 30V is damaged!)
Allowing error: ± 1%; the error is ± 0.3V when it is greater than or equal to 10V;
Input impedance:> 100k Euro
Working current: <23MA
Refresh speed: about 300ms once
Display: Three -bit 0.36 "LED digital tube
Show color: red
Line length: 15cm

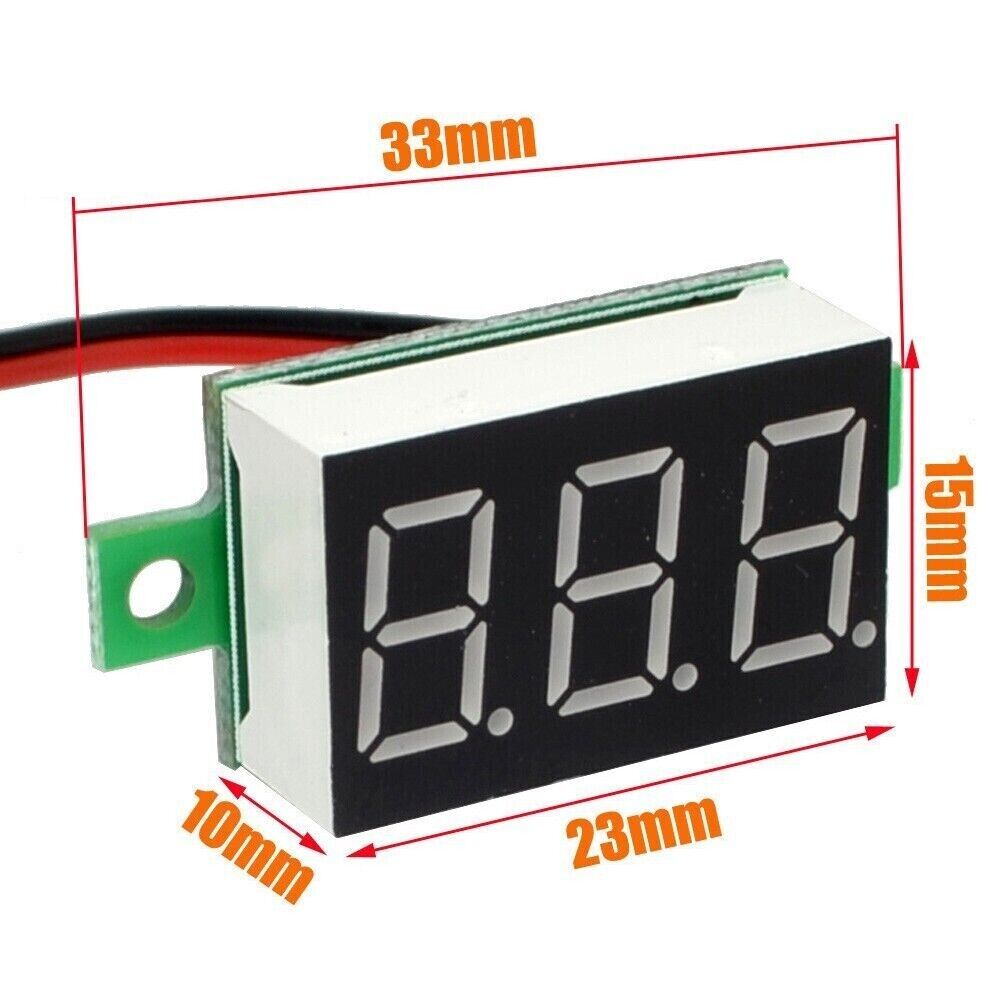

Dimensions: 23 x 15 x 10 mm, long * wide * thick (excluding installation ear)
Including ear -installed ear length: 33mm
Installation holes: Pole distance: 28mm, Pores: 2.8mm
Net weight: 4.7G
Mao heavy: 5.3G
Work temperature: -10 ℃ ~ 65 ℃
