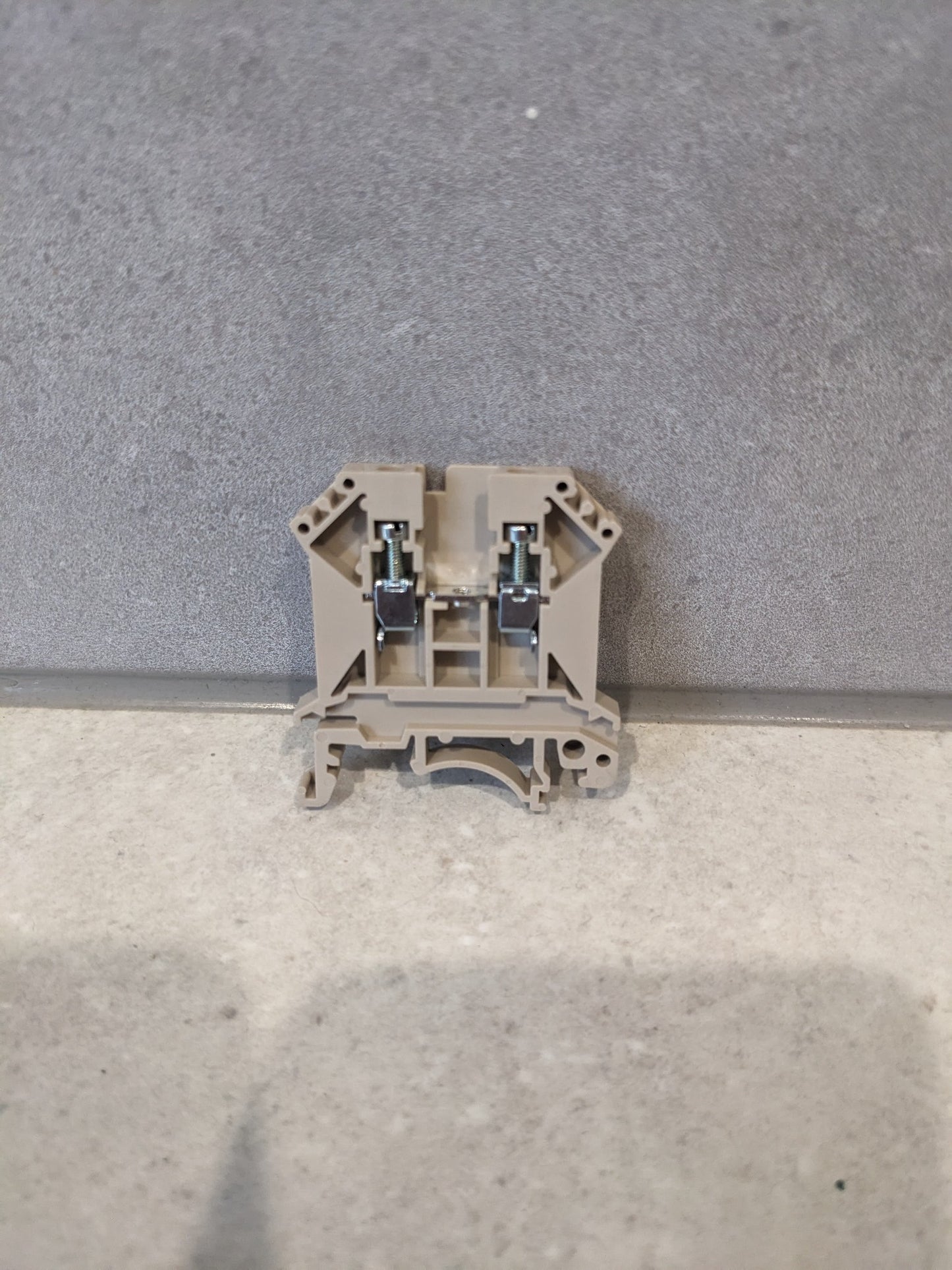

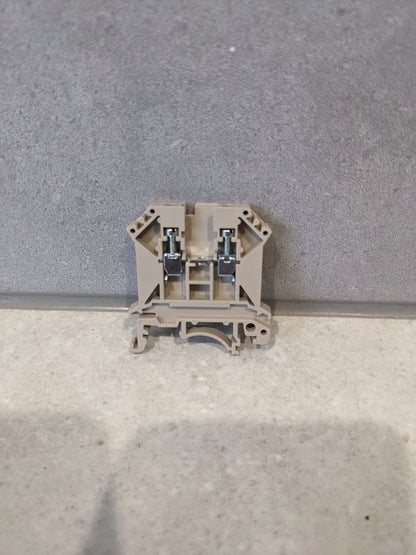

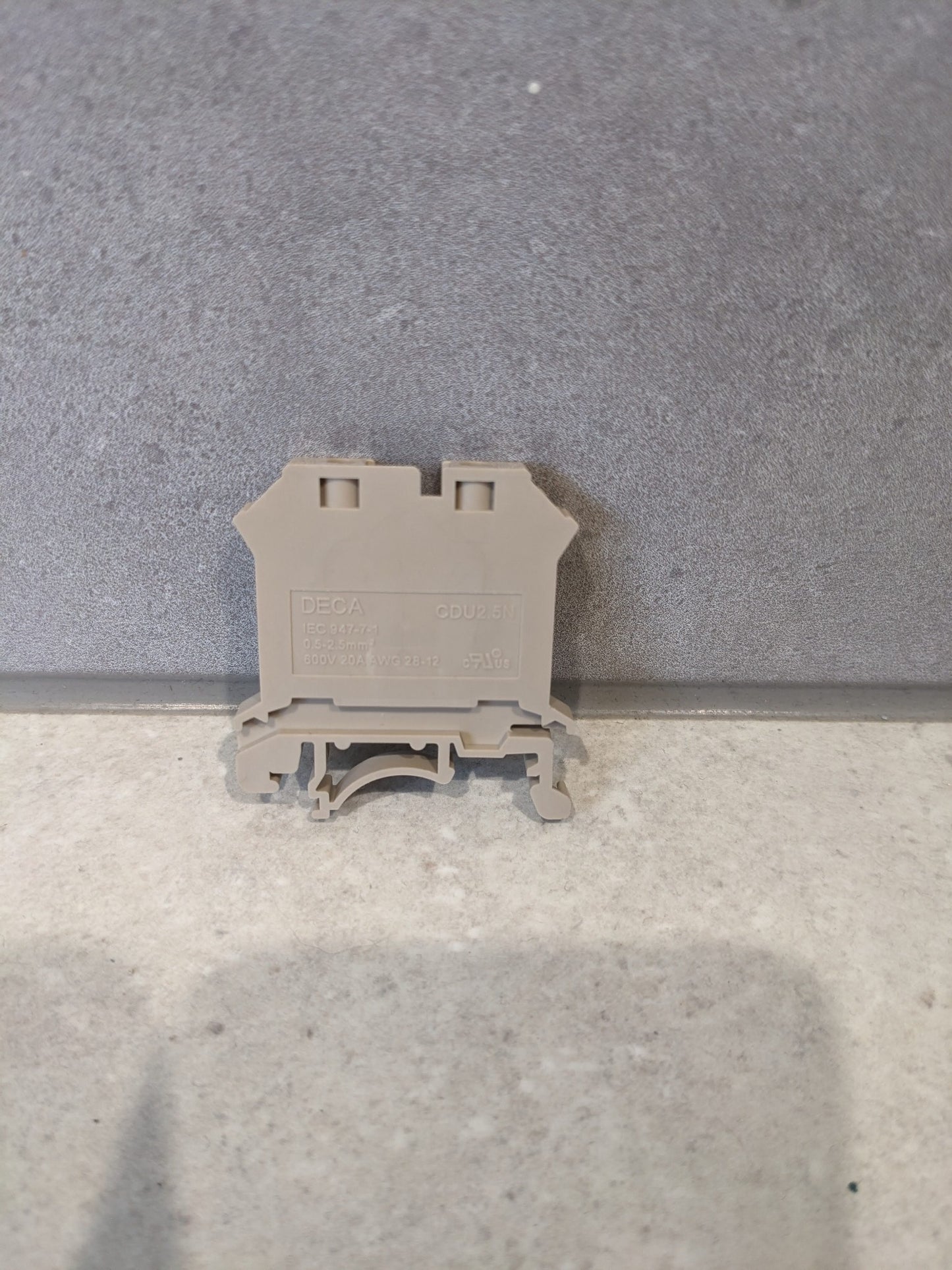

DIN Rail Terminal Block, 2.5mm², Single-Level, Screw Termination 878-7503

RS PRO DIN Rail Terminal, 28 → 12 AWG, 2.5 mm², 800 V

This versatile mini DIN rail terminal from RS PRO will help you keep your electrical connections tidy and organised. It's simple to mount and dismount from the DIN rail and its compact design makes it easy to handle.

Screw clamps allow you to quickly and easily make secure connections and wires can be connected without any special preparations. The very low contact resistance ensures a high-quality transmission that will maintain a strong and steady signal. Once installed, the terminal offers high reliability and requires little in the way of maintenance. Its excellent vibration resistance makes it suitable for use in a wide range of commercial and industrial environments.

The terminal conforms to the Restriction of Hazardous Substances (RoHS) directive, meaning it contains only minimal levels of any hazardous substances. Mini terminal blocks of this kind are commonly used for connecting electrical circuits in confined spaces.

Features and Benefits

• Cross-sectional area (CSA) of 2.5 mm²


• Current rating of 20 A Underwriters Laboratory (UL), 20 A Canadian Standards Association (CSA), 24 A International Electrotechnical Commission (IEC)


• Single level


• Voltage rating of 800 V


• Wire size of 28 to 12 American Wire Gauge (AWG)
