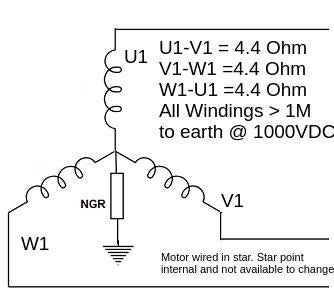

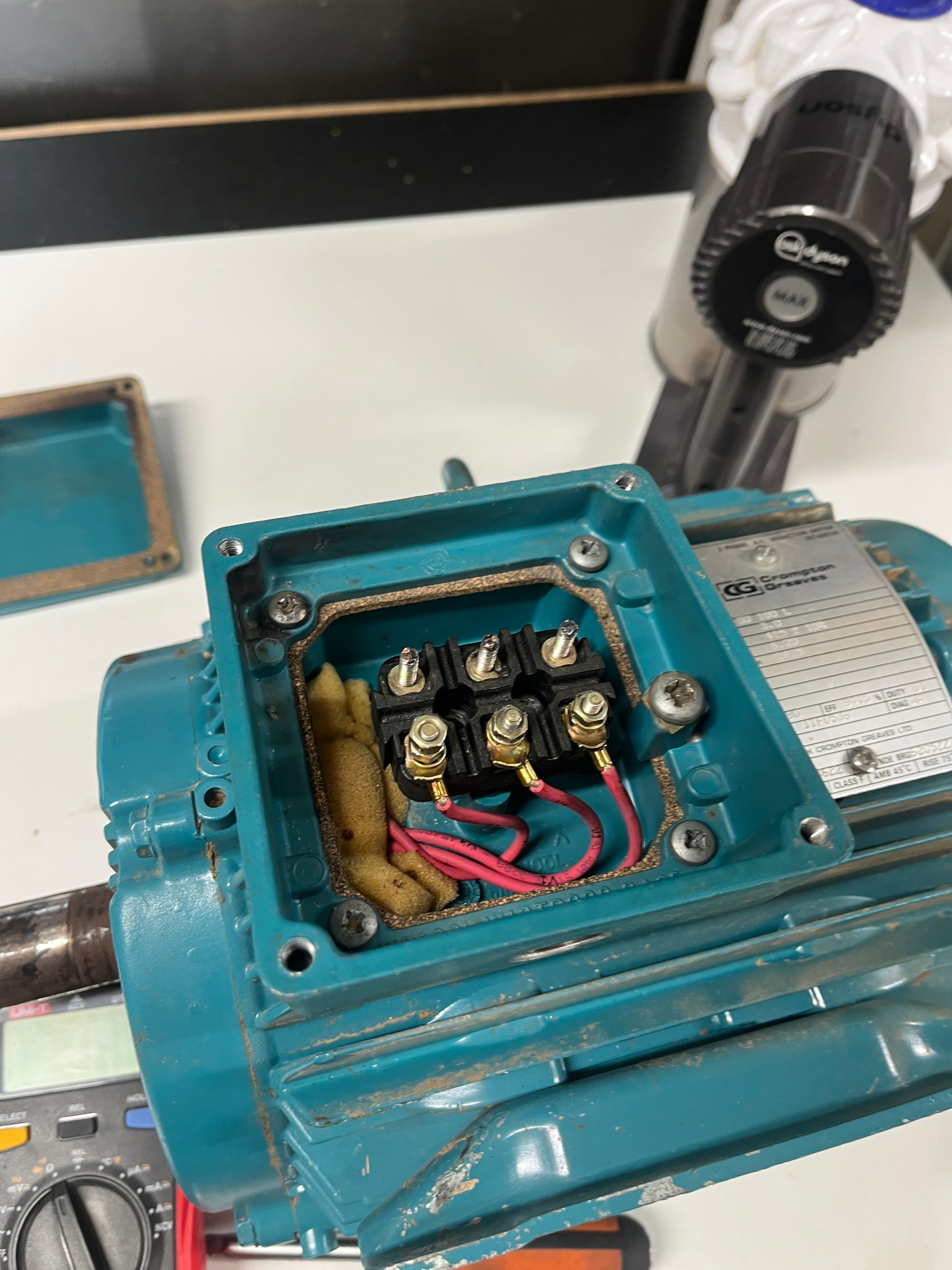

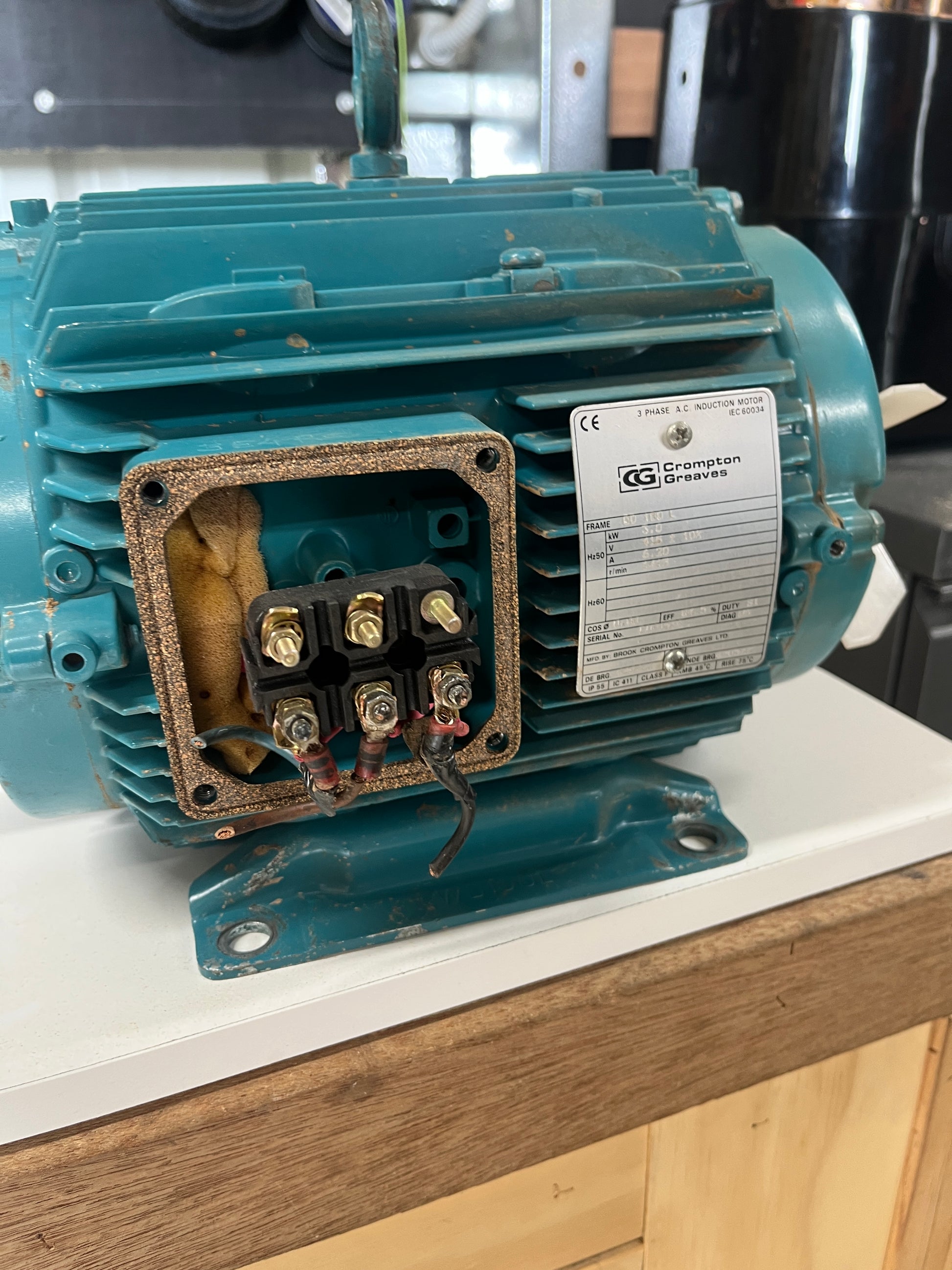

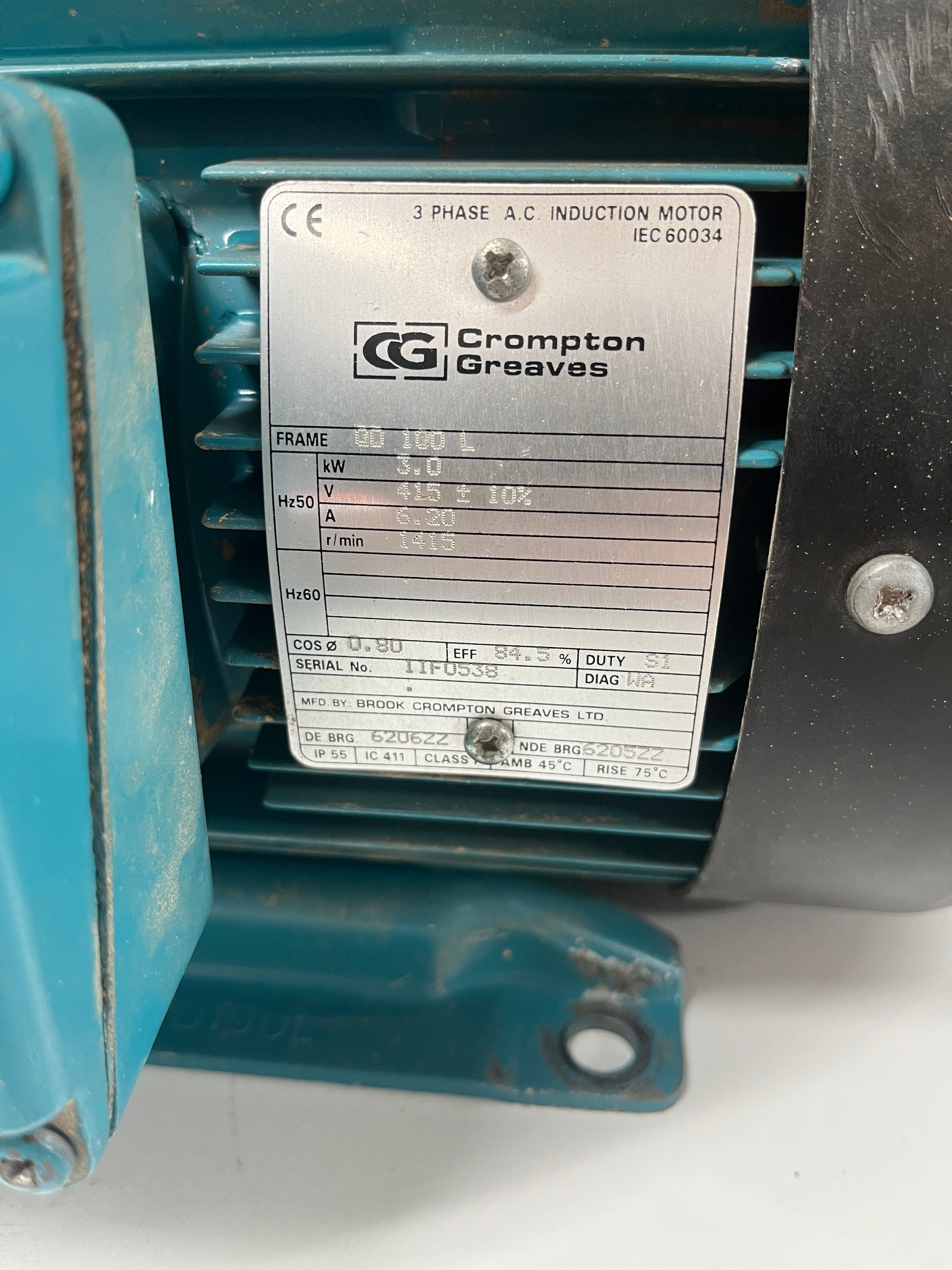

Windings Tested as per photo. Motor is wired in permanent star configuration (cannot be changed as star point is internal). Motor not switched on for testing. Motor cleaned with compressed air only. Based on previous dust build up looks like it was used for woodworking machinery. Shaft spins freely.

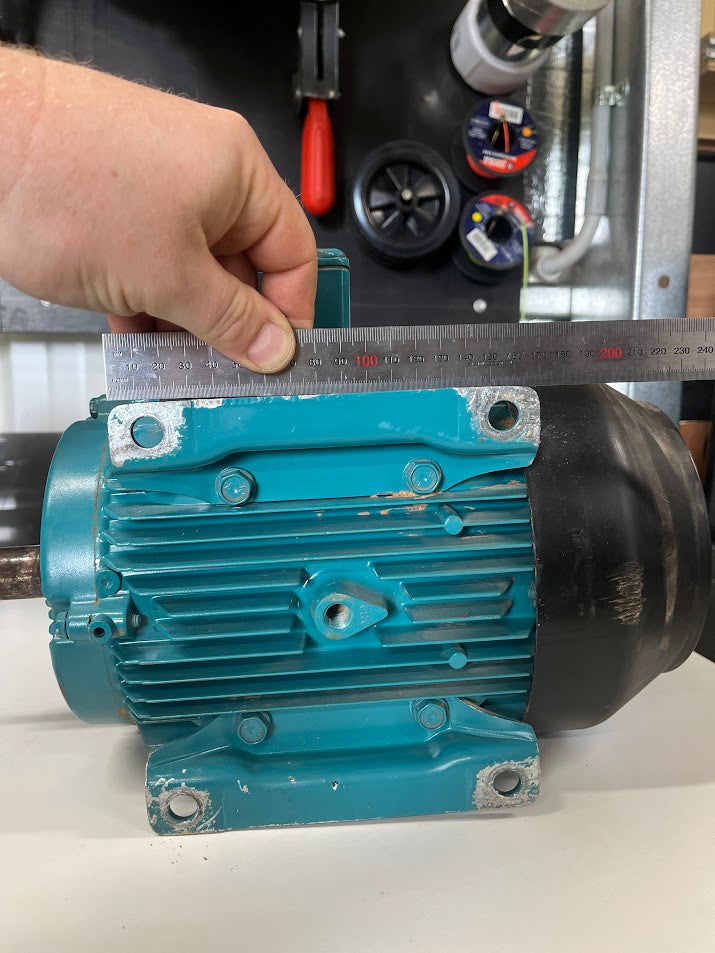

Mounting Holes as per Photos. WD100L base.
Dimensions
370mm Length

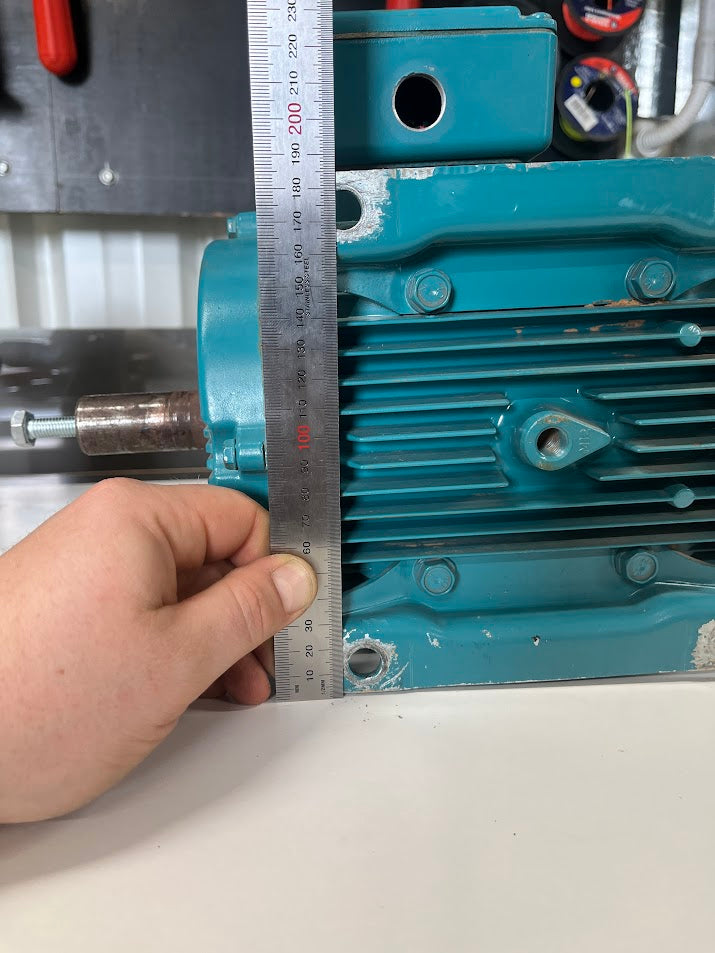

195mm Height (not including Eye Bolt)
250mm Width (including Terminal block)
28mm shaft with 60mm Length
Shaft has keyway and M10 internal Thread.
GD100L Frame,
A Premium quality 'IE3 HIGH EFFICIENCY' motor, with a Comprehensive range to suit a wide range of applications – from agriculture, building, construction, textiles, food & drink to water treatment and quarrying. Certified by the relevant authorities of major countries around the world.
