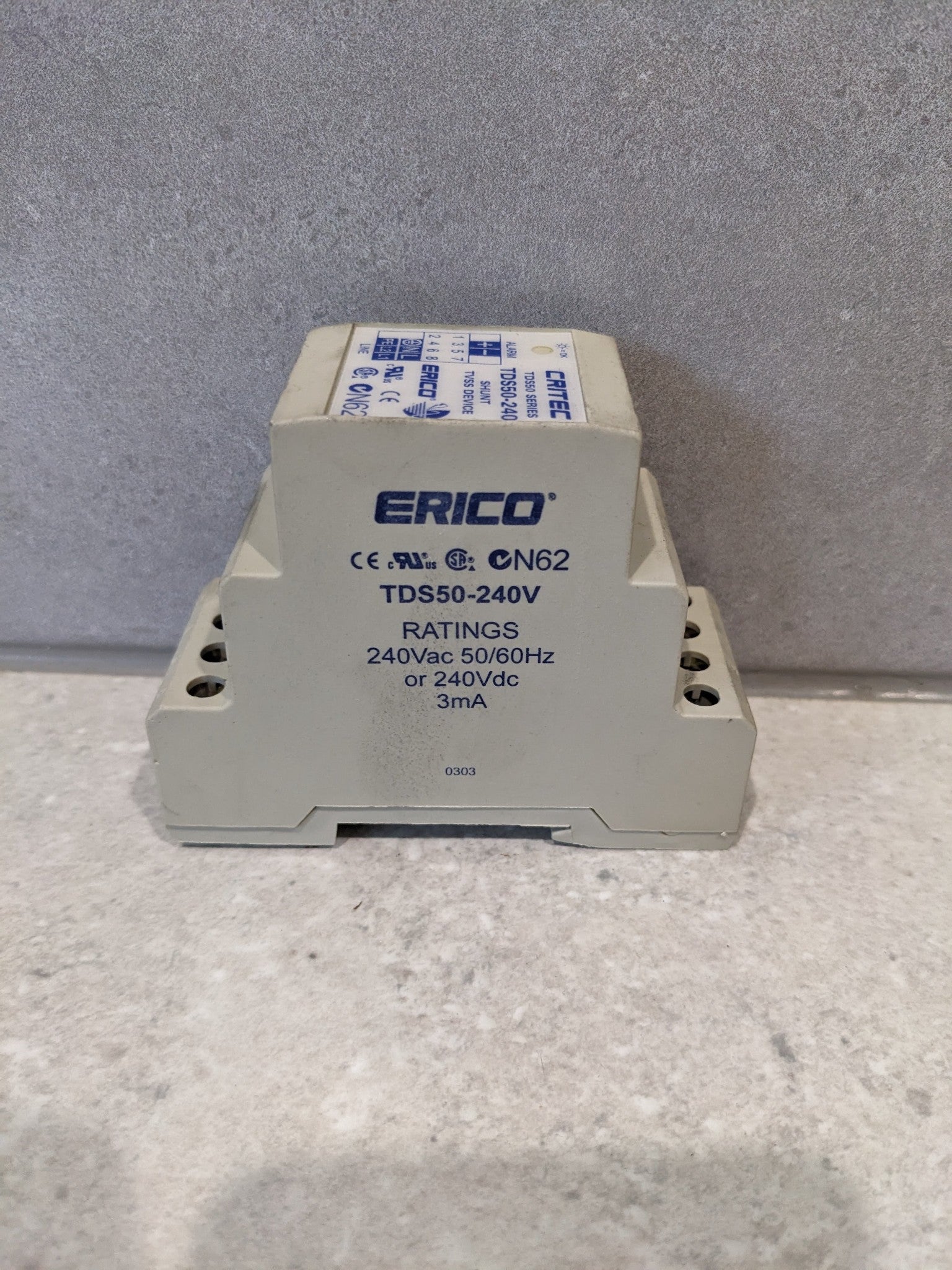

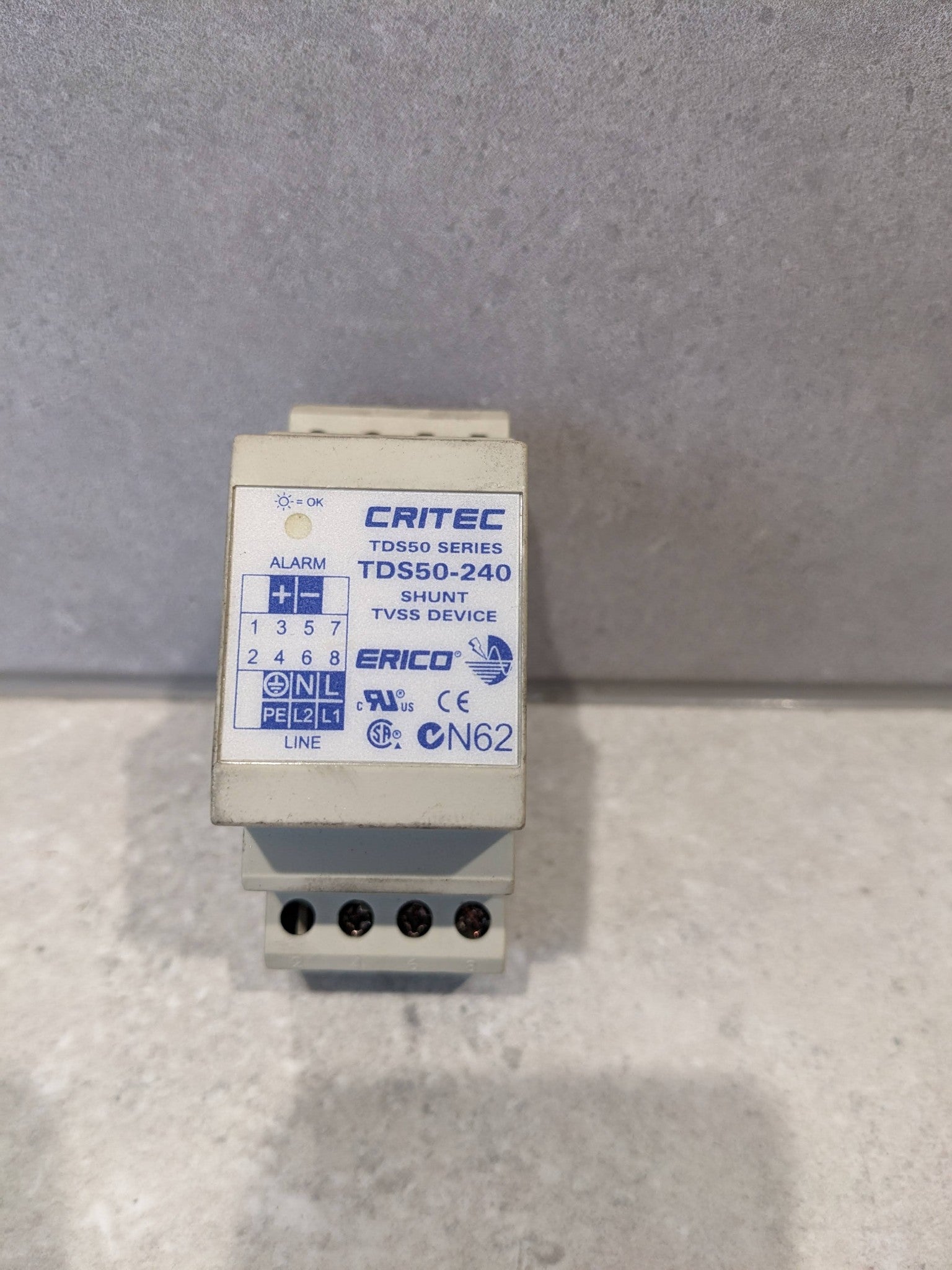

CRITEC TDS50240 50 kA Din rail Surge Diverter TD technology 3 Mode

CRITEC TDS50240 50 kA Din rail Surge Diverter TD technology 3 Mode

$50.00
$50.00
Sale Sold out

CONDITION

Item is in good condition

TIPS

  • Must be installed by a licensed Electrician

TESTS COMPLETED: F

Features:

FEATURES

  • In-line series protection
  • EMI/RFI noise filtering protects against industrial electrical noise
  • Compact design fits into motor control and equipment panels
  • Three modes of protection: L-N, L-PE and N-PE
  • DIN rail mount provides simple installation
  • LED power indicator

SPECIFICATIONS

Part Number TDS50240
Article Number 700305
Nominal System Voltage (Un) 240 VAC
Max Continuous Operating Voltage (Uc) 340 VAC
Voltage Protection Rating (VPR) 800 V @ 3 kA
Max Discharge Current (Imax) 20 kA 8/20 μs L-N
20 kA 8/20 μs L-PE
10 kA 8/20 μs N-PE
Frequency 50 – 60 Hz
Protection Modes L-N
L-PE
N-PE
Connection, Stranded 6 mm² Max
Response Time 5 ns Max
Mounting 35 mm top hat DIN rail
Enclosure Material UL® 94V-0 Thermoplastic
Enclosure Rating IP 20
NEMA®-1
Status Indication LED
Remote Contacts No
Module Width 2 M
Depth (D) 68 mm
Height (H) 90 mm
Width (W) 35 mm
Unit Weight 0.18 kg
Designed to Meet ANSI®/IEEE® C62.41.2 Cat A, Cat B, Cat C
Standard Packaging Quantity 1 pc
UPC 78285644043
EAN-13 8711893029840
