Adelaide Electrical Salvage

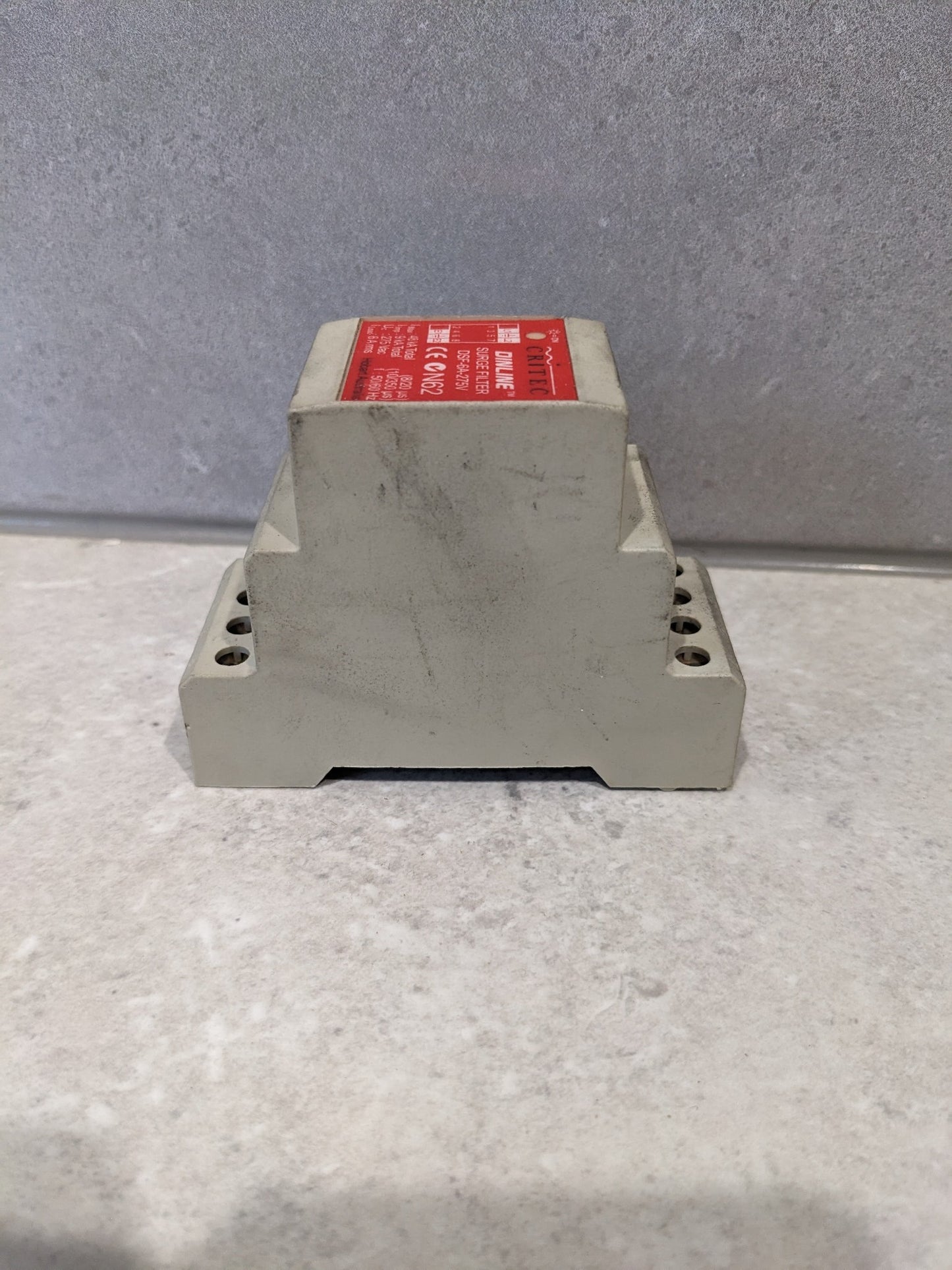

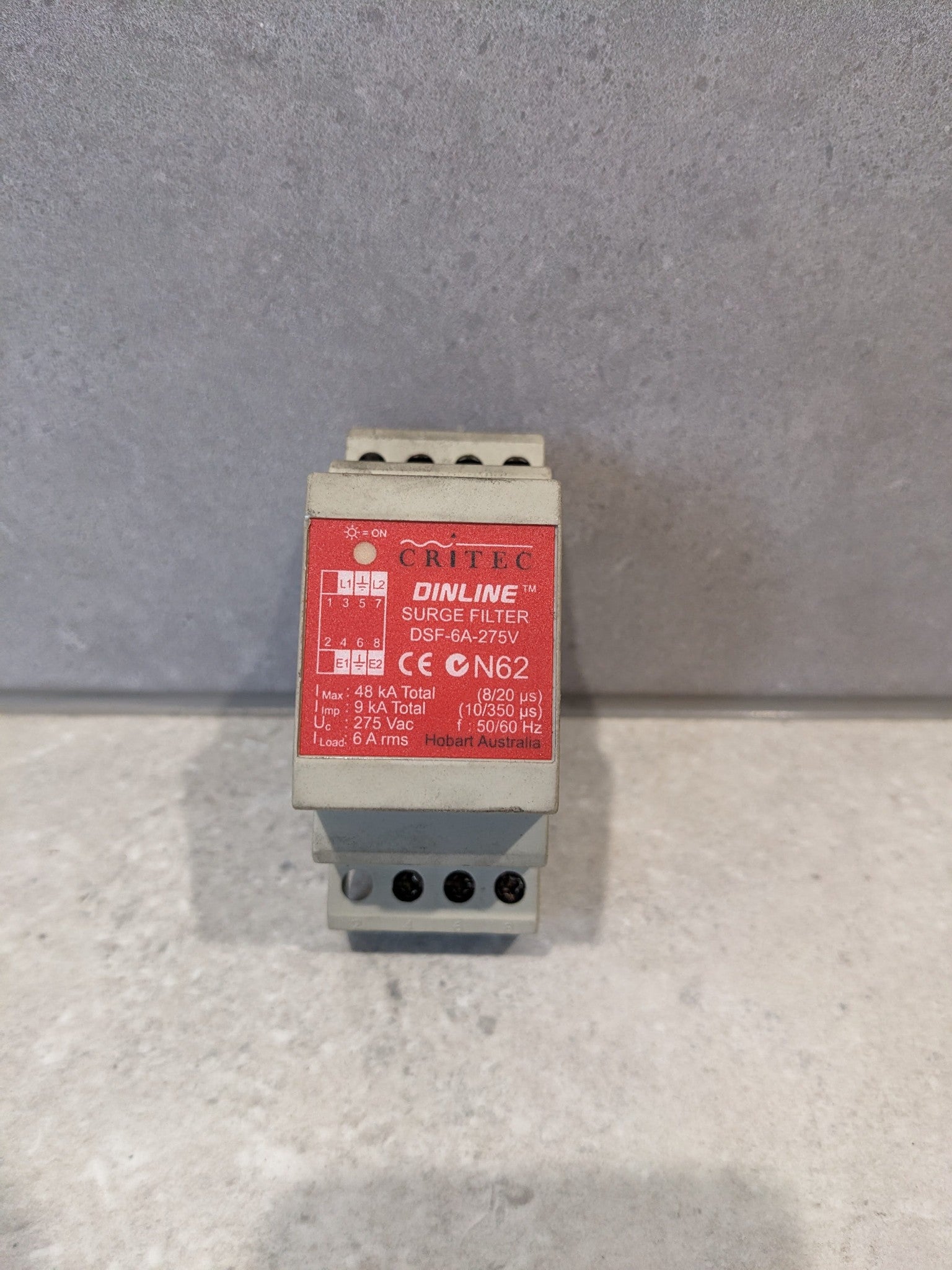

Critec Erico DSF-6A-275V Surge Filter
Critec Erico DSF-6A-275V Surge Filter
Regular price
$50.00
Regular price
Sale price
$50.00
Unit price
/
per
Couldn't load pickup availability
CONDITION
Item is in good condition
TIPS
-
Must be installed by a licensed Electrician
TESTS COMPLETED: F
Features:
Critec Erico DSF-6A-275V Surge Filter
- In-line series protection
- EMI/RFI noise filtering protects against industrial electrical noise
- Compact design fits into motor control and equipment panels
- Three modes of protection: L-N, L-PE and N-PE
- DIN rail mount provides simple installation
- LED power indicator
SPECIFICATIONS
| Part Number | DSF6A275V |
| Article Number | 701030 |
| Rated Load Current (IL) | 6 A |
| Nominal System Voltage (Un) | 220 – 240 V |
| Max Continuous Operating Voltage (Uc) | 275 VAC |
| Frequency | 50 – 60 Hz |
| Max Operating Current | 7 mA |
| Max Discharge Current (Imax) | 16 kA 8/20 μs L-N 16 kA 8/20 μs L-PE 16 kA 8/20 μs N-PE |
| Voltage Protection Level (Up) | 750 V @ 3 kA |
| Back-Up Overcurrent Protection | 6 A |
| Filtering | -3 dB @ 300 kHz |
| Distribution System | 1Ph 2W+G |
| Protection Modes | All modes protected |
| Connection, Solid | 1 – 6 mm² |
| Connection, Stranded | 1 – 6 mm² |
| Mounting | 35 mm top hat DIN rail |
| Status Indication | LED |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20 NEMA®-1 |
| Temperature | -35 to 55 °C |
| Module Width | 2 M |
| Depth (D) | 68 mm |
| Height (H) | 90 mm |
| Width (W) | 36 mm |
| Unit Weight | 0.2 kg |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B |
| Certifications | CE C-Tick |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285647498 |
| EAN-13 | 9321098000149 |
