BlueDiamond MegaBlue Rotary Diaphragm Suction Lift Condensate Pump

The Blue Diamond Mega Blue is the highest-capacity suction lift condensate pump on the market, capable of up to 20m discharge head. Revolutionary rotary diaphragm motor design eliminates common failure points - no filter to clog, no float to stick. Airborne particles pass straight through, whereas piston-type pumps would fail.

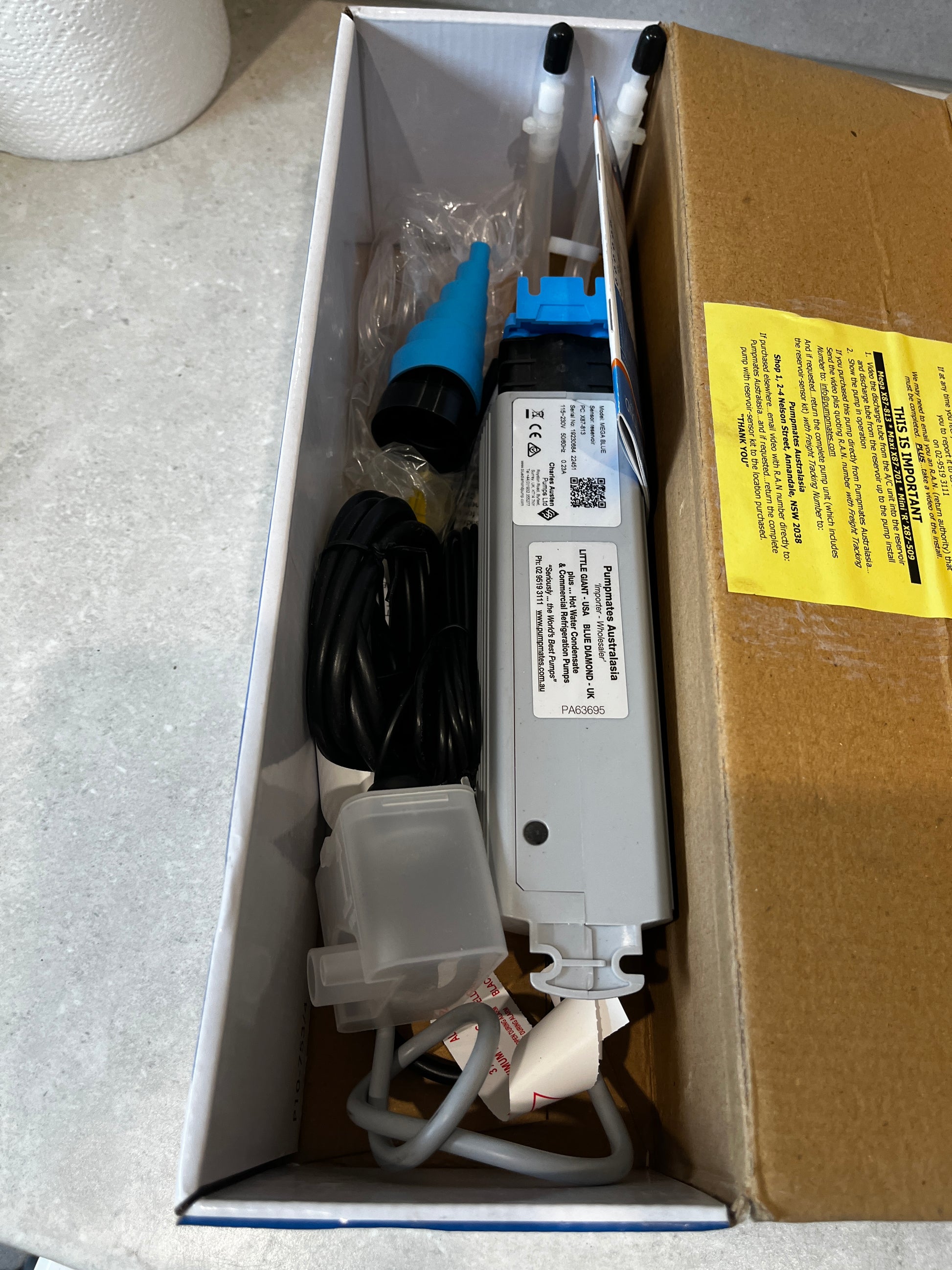

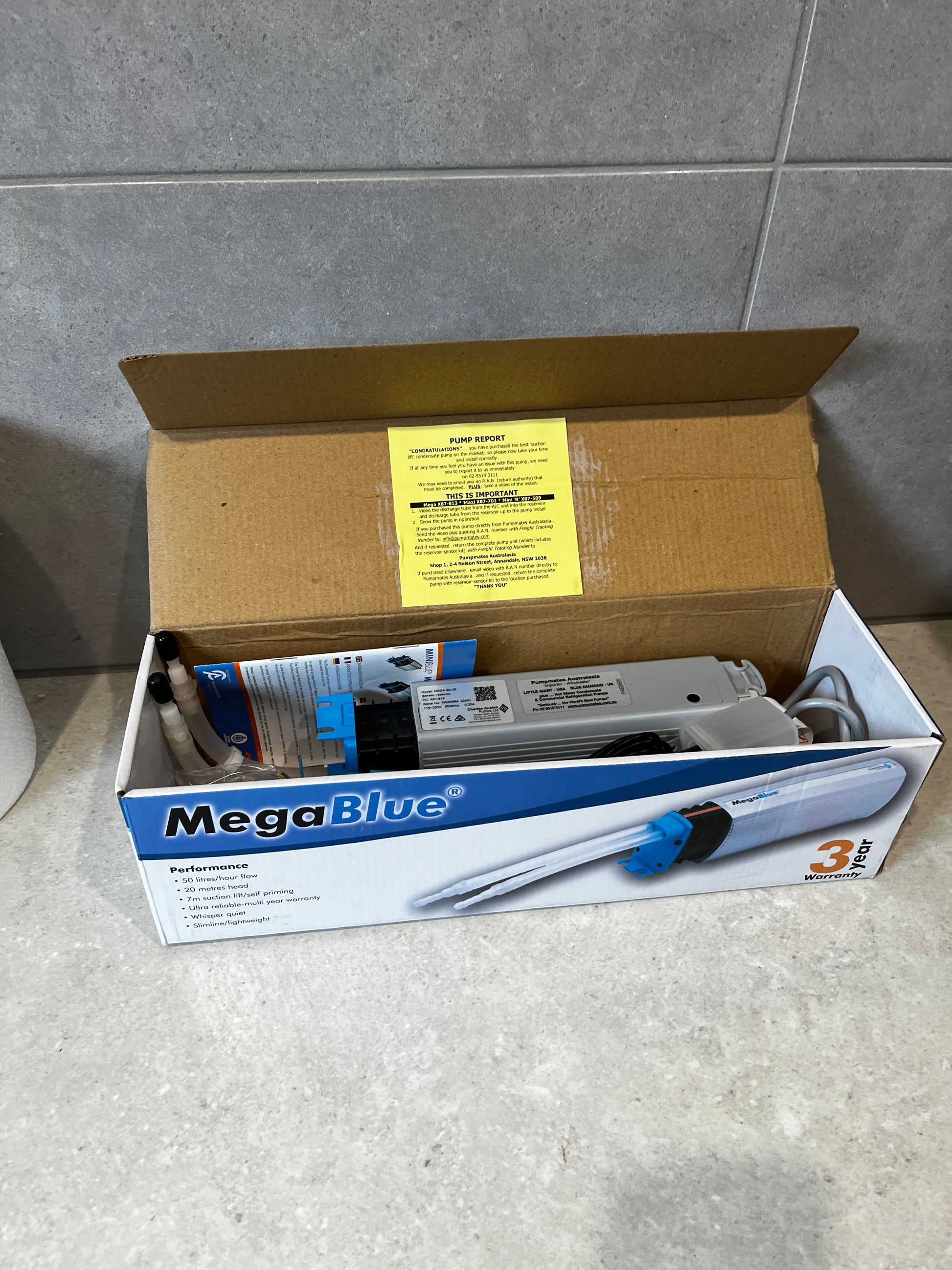

Ultra-quiet operation at 23dBA makes it ideal for noise-sensitive installations. Available in two configurations: Reservoir Kit (X87-813) for air conditioning up to 50kW, or Temperature Sensor Kit (X87-814) for installations up to 50kW. Both models feature silent running and industry-leading 3-year warranty.

Maximum suction lift of 7 metres. Must use only 6mm I.D. reinforced or thick-wall clear tubing for reliable operation. 5-metre sensor extension available separately.

Important: Professional installation by HVAC-R technicians only. Reservoir model recommended for quietest operation. Do not use on A/C units larger than specified capacity.

Key Specifications - X87-813 Reservoir Kit:

• Maximum Flow Rate: 50 L/hr at zero lift
• Maximum Head: 20m (cut-off at no flow)
• Maximum Suction Lift: 7m
• Power: 230V, 50/60Hz
• Noise Level: 23dBA
• Suitable For: A/C units up to 25kW
• Tubing: 6mm I.D. reinforced or thick-wall clear tube only
• Pump Dimensions: 64mm (H) x 276mm (L) x 51mm (W)
• Reservoir Dimensions: 64mm (H) x 276mm (L) x 70mm (W)
• Warranty: 3 years
• Type: Rotary diaphragm - no filter, no float
