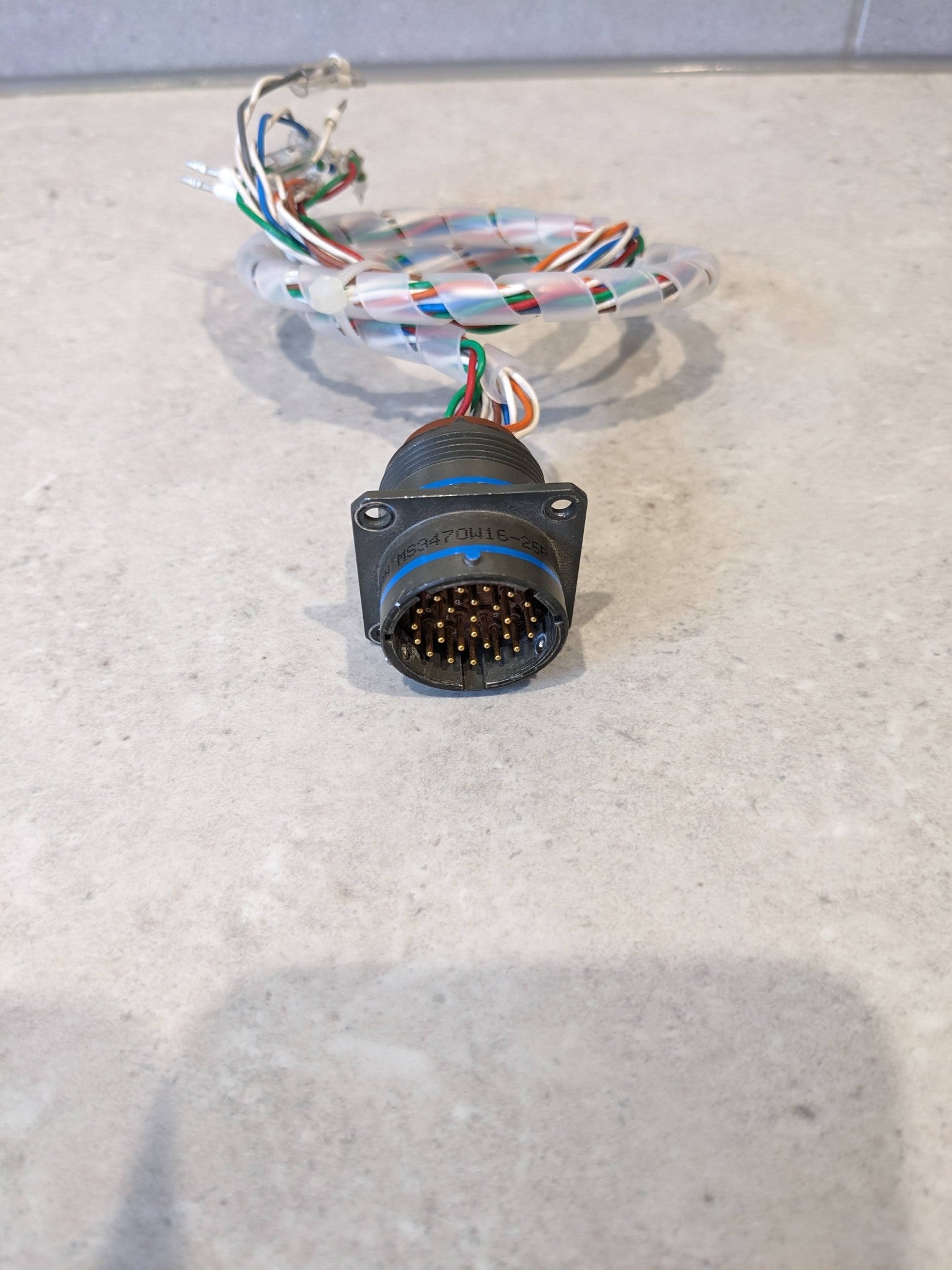

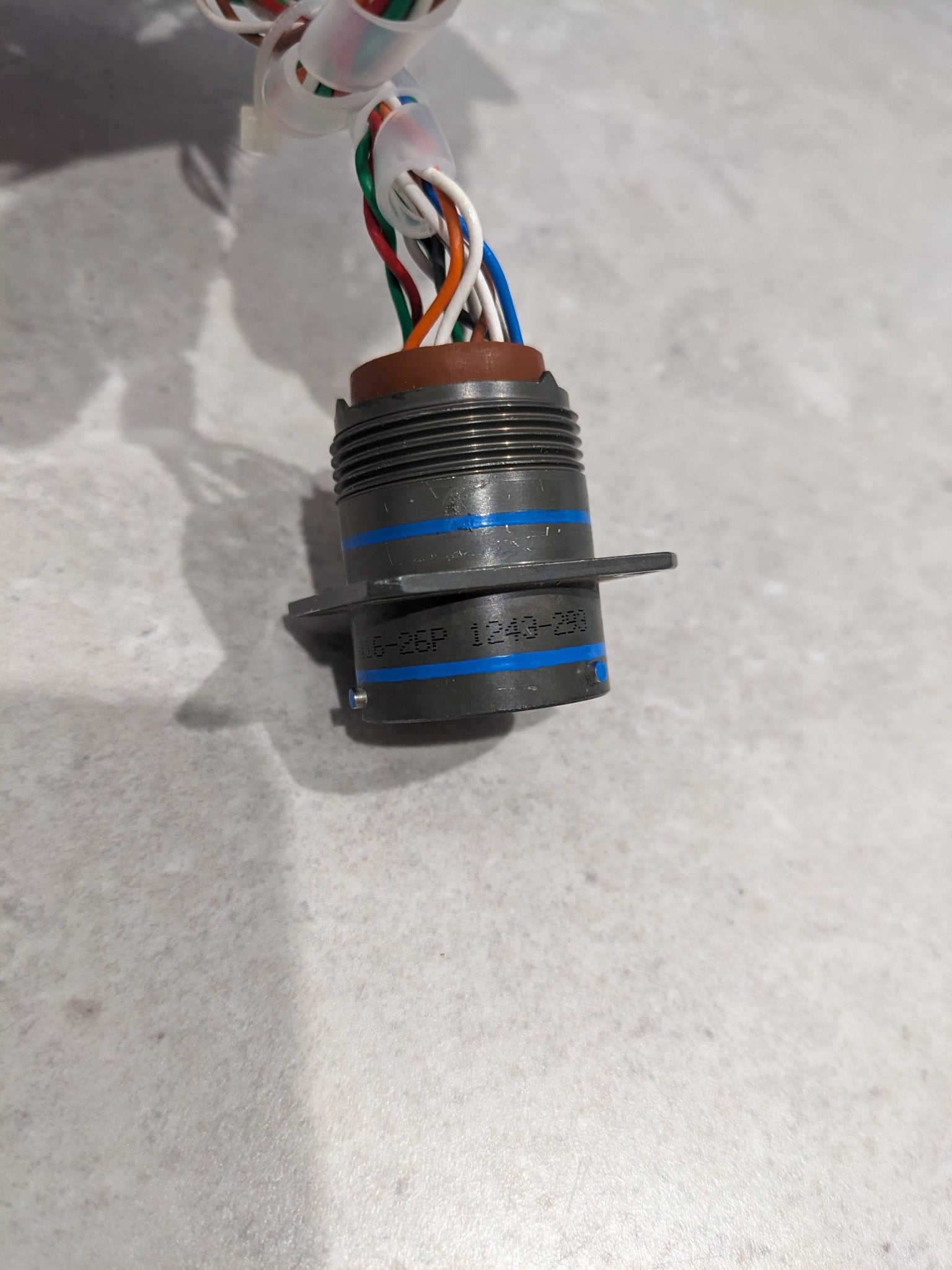

Amphenol Aerospace MS3470W16-26P MIL Spec 26 Pin Connector Panel Mount Cannon

CONDITION

Item is in great condition, showing no obvious damage or defect

TIPS

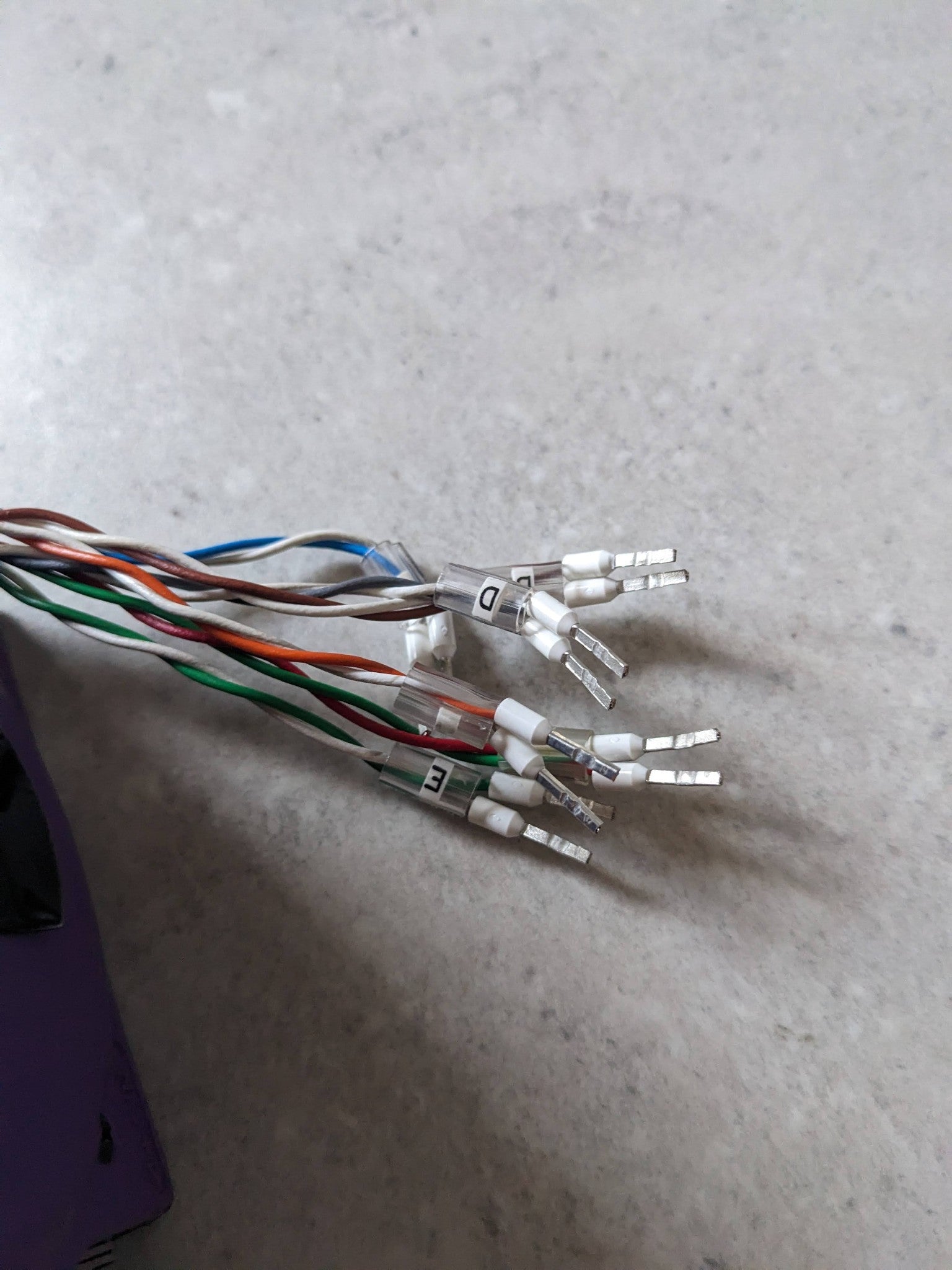

• Comes with Pre terminated leads in 12 of the positions ( A,B,C,D, E, F,K,L,M, N,P,R) potentially saving money through labor and materials for the right project

• Lead is approximately 600mm from flange to ferrule end.

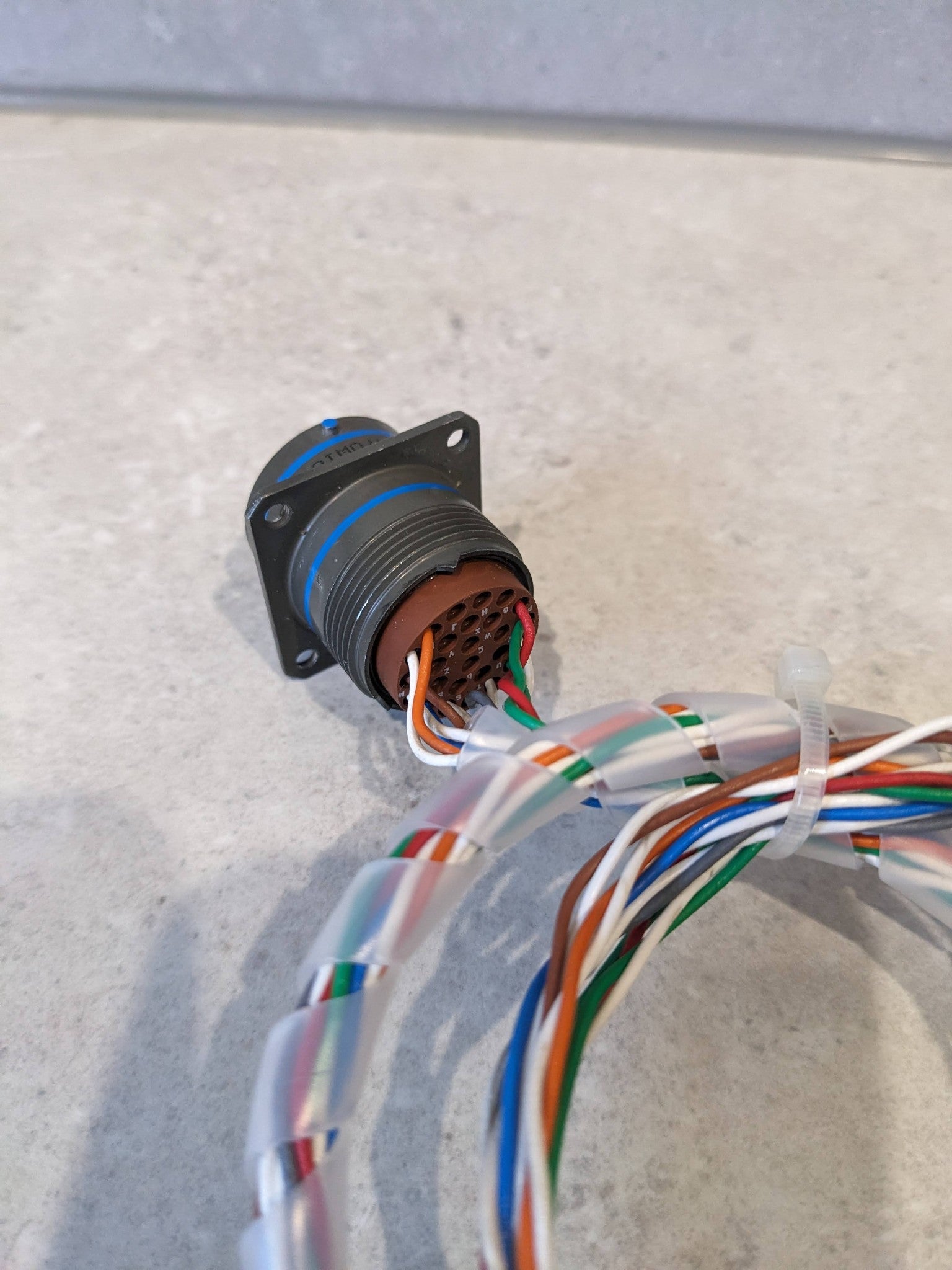

• Cable Label holders already preinstalled

• See below image for pinouts

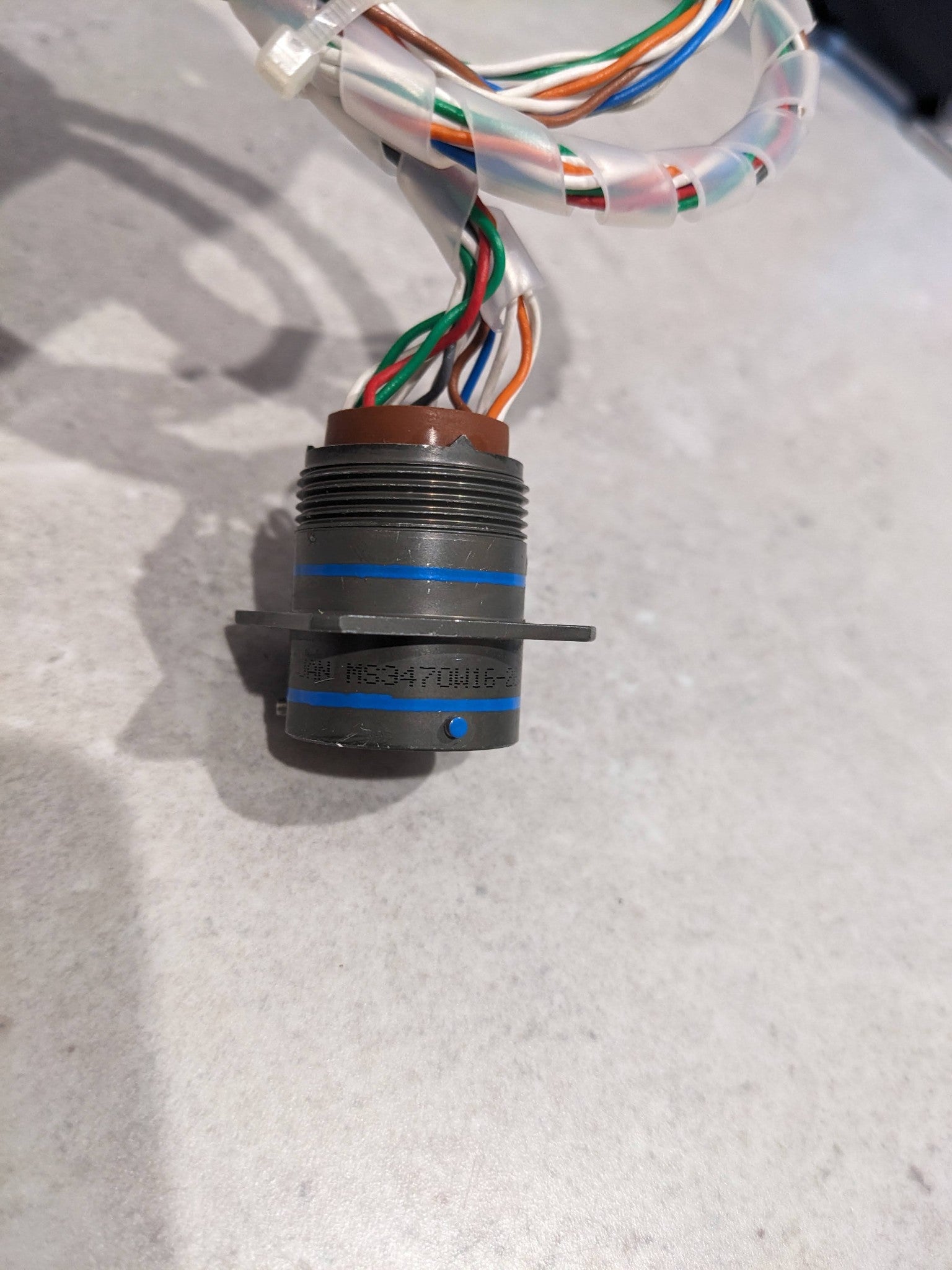

• Has flange for mounting with nut and bolt configuration to a panel

• Has male pins

• These plugs have an RRP of over $120 per piece, and the crimp pins are extra

•

• Front face of pin insert or rear face of socket insert illustrated

TESTS COMPLETED:

Features:

HIGH-PERFORMANCE MINIATURE CONNECTOR PERFECT FOR AEROSPACE APPLICATIONS

Amphenol’s MB MIL-DTL-26482 series II (Matrix®) miniature cylindrical connectors have a quick-mating, three-point bayonet coupling system.

Given their small size and high-quality contact retention and seal, MB series connectors are excellent for high-reliability applications in the harshest conditions, including the aerospace industry.

Specifications:
