Adelaide Electrical Salvage
2713722 | Phoenix Contact | DIN RAIL CONNECTOR 5 POS 3.81MM TBUS
2713722 | Phoenix Contact | DIN RAIL CONNECTOR 5 POS 3.81MM TBUS
Regular price
$10.00
Regular price
Sale price
$10.00
Unit price
/
per
Couldn't load pickup availability
CONDITION

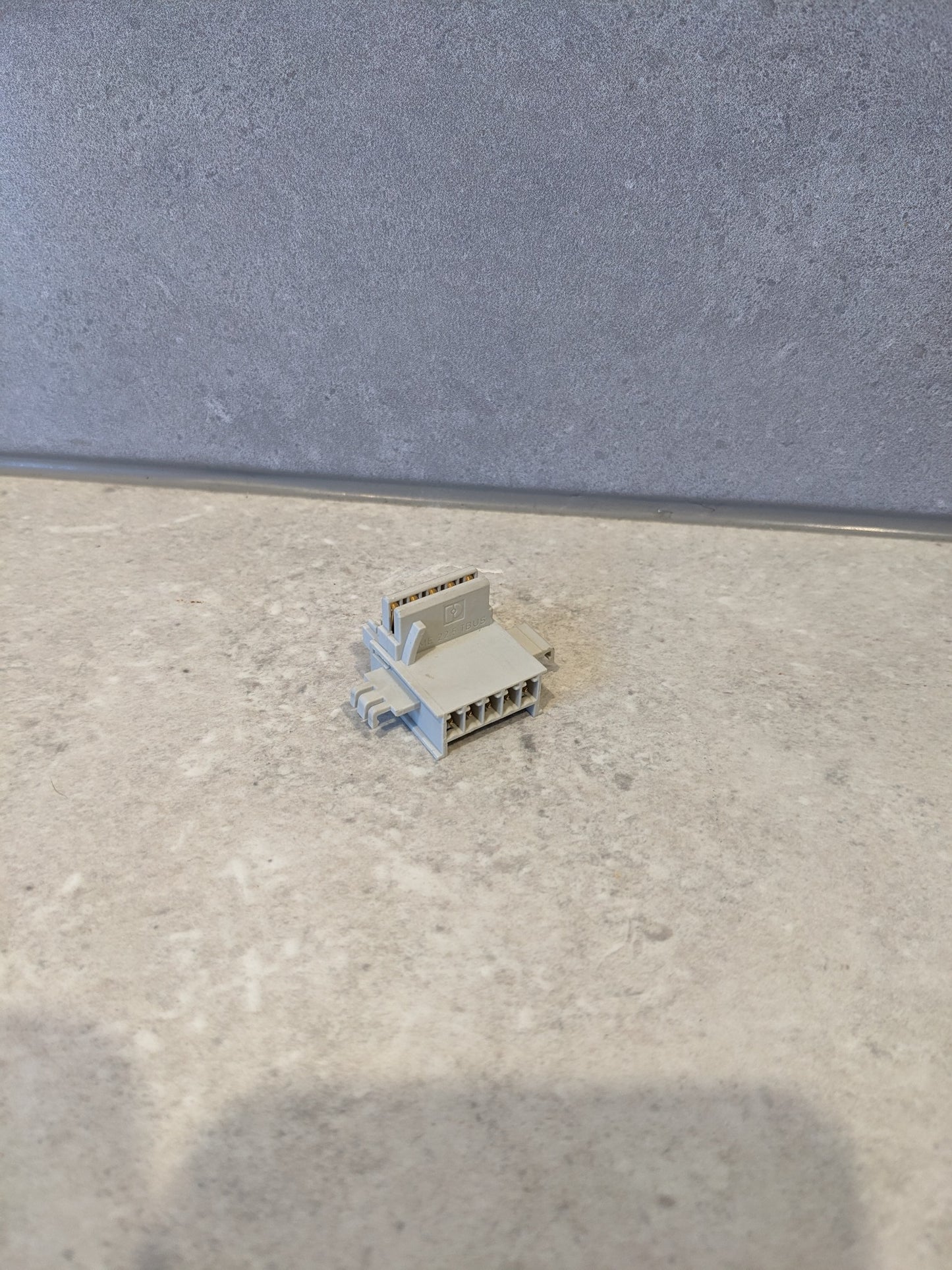

In good used condition, salvaged from a decommissioned project.
TIPS
TESTS COMPLETED:
Features:

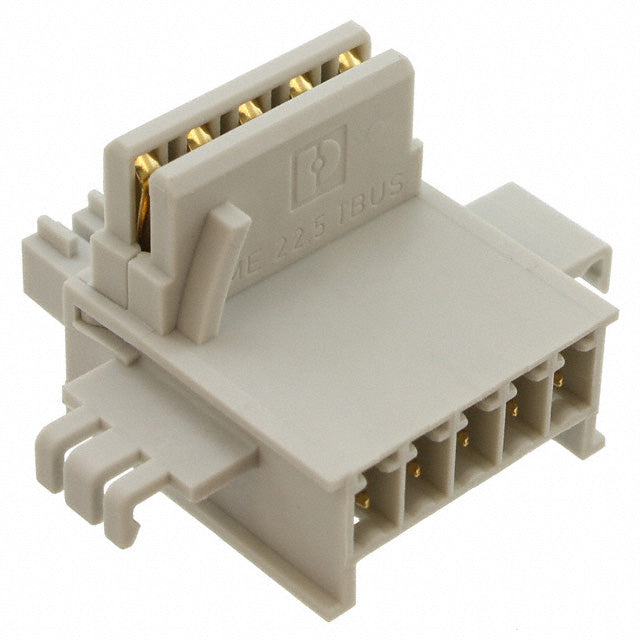

2713722 | Phoenix Contact | DIN RAIL CONNECTOR 5 POS 3.81MM TBUS
DIN rail connector,
color: light grey,
nominal current: 8 A (parallel contacts),
rated voltage (III/2): 125 V,
contact surface: Gold,
number of positions: 5,
product range: TBUS5-22,5..,
pitch: 3.81 mm,
mounting: DIN rail mounting,
locking: without,
mounting: without,
Specifications:
| Nominal current IN | 8 A (parallel contacts) |
| Nominal voltage UN | 125 V |
| Contact resistance | 4.4 mΩ |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated voltage (III/2) | 125 V |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated voltage (II/2) | 320 V |
| Rated surge voltage (II/2) | 2.5 kV |
