DeLonghi Brew Unit Drive Spindle Nut Magnifica PrimaDonna Dinamica

DeLonghi Brew Unit Drive Spindle Nut Magnifica PrimaDonna Dinamica

$40.00
$40.00
Sale Sold out

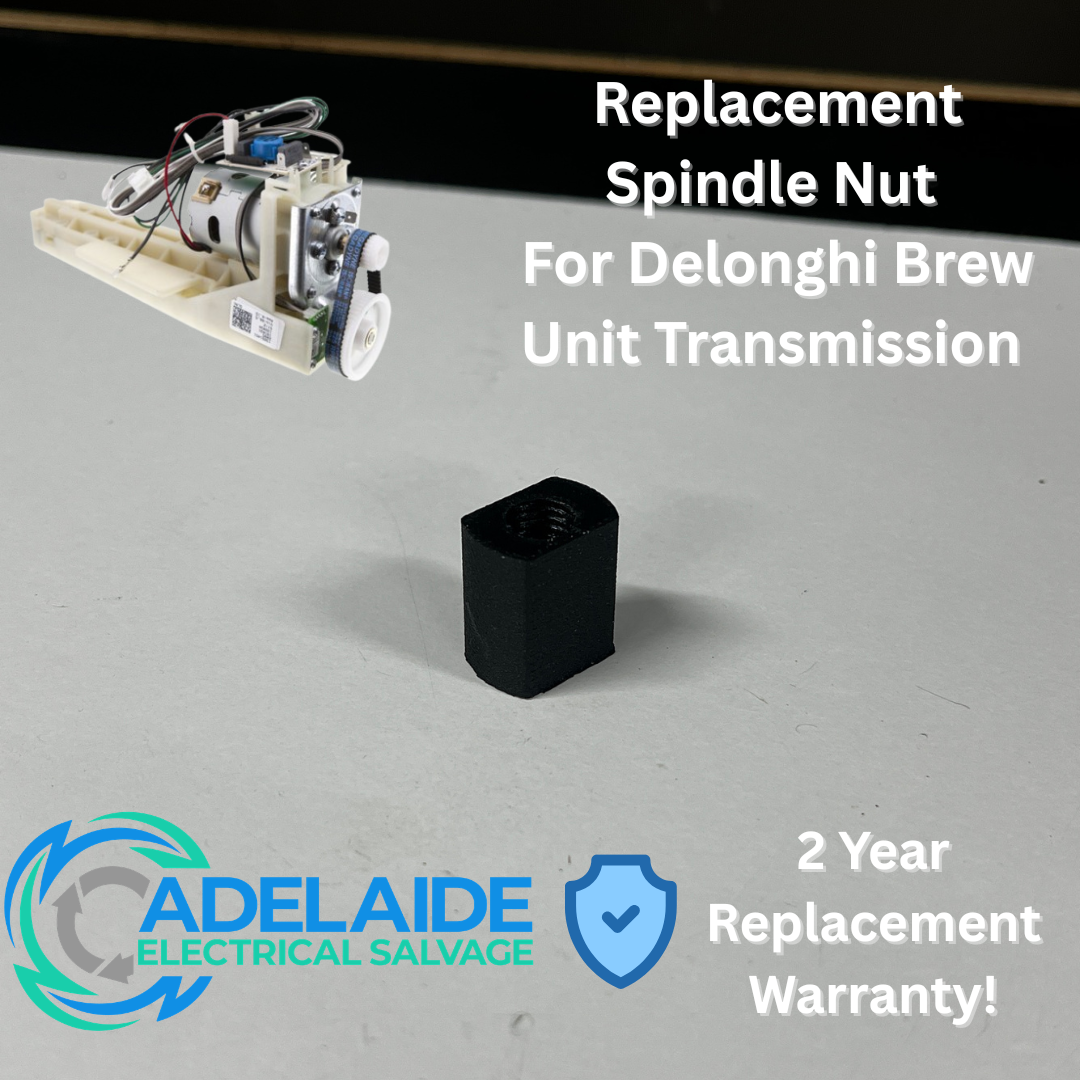

DeLonghi Brew Unit Drive Spindle Nut - 3D Printed Nylon PA12-CF -

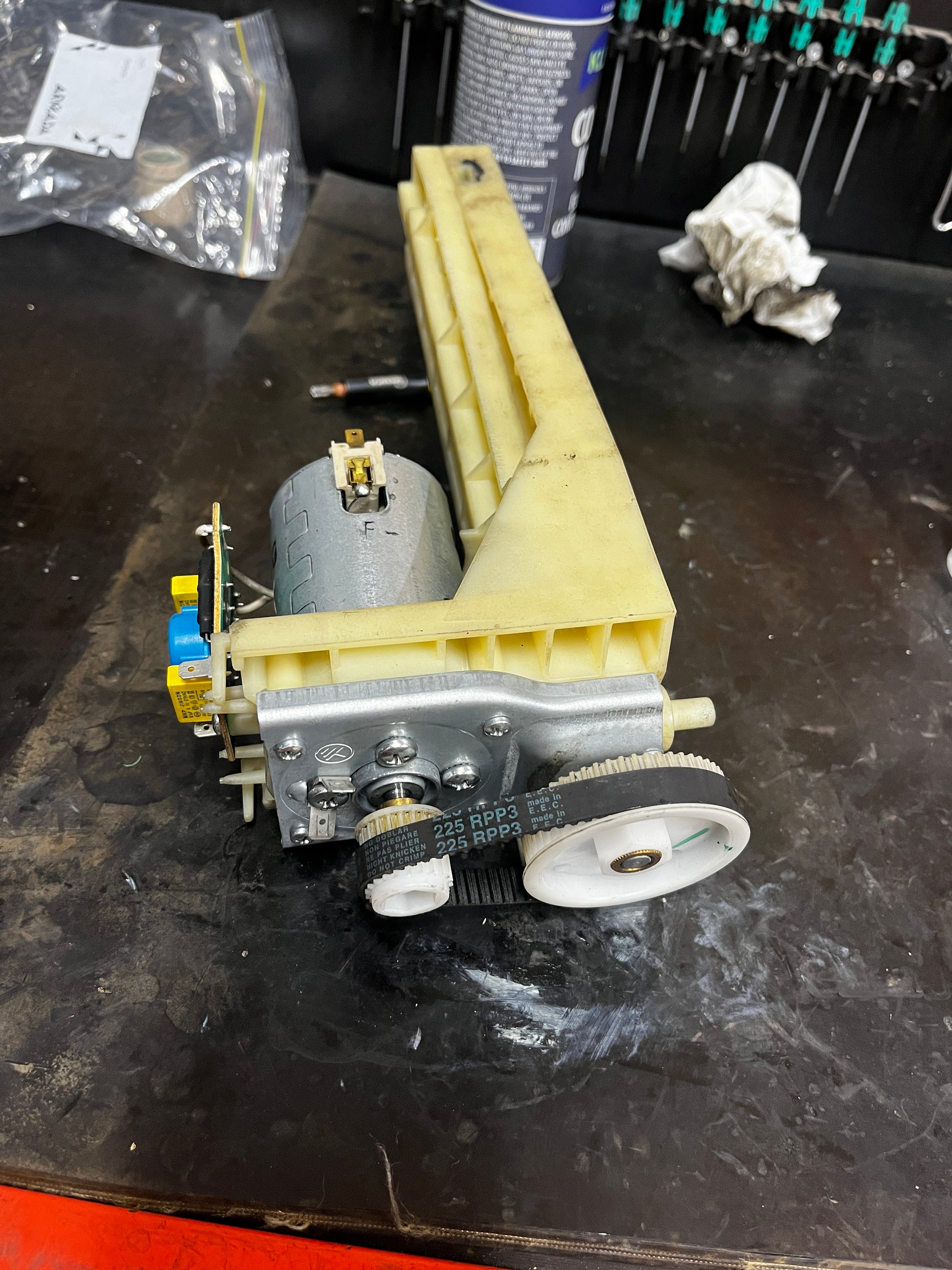

To suit Delonghi Transmission 7313249601 / 7313261451 + Coffee machine Models below

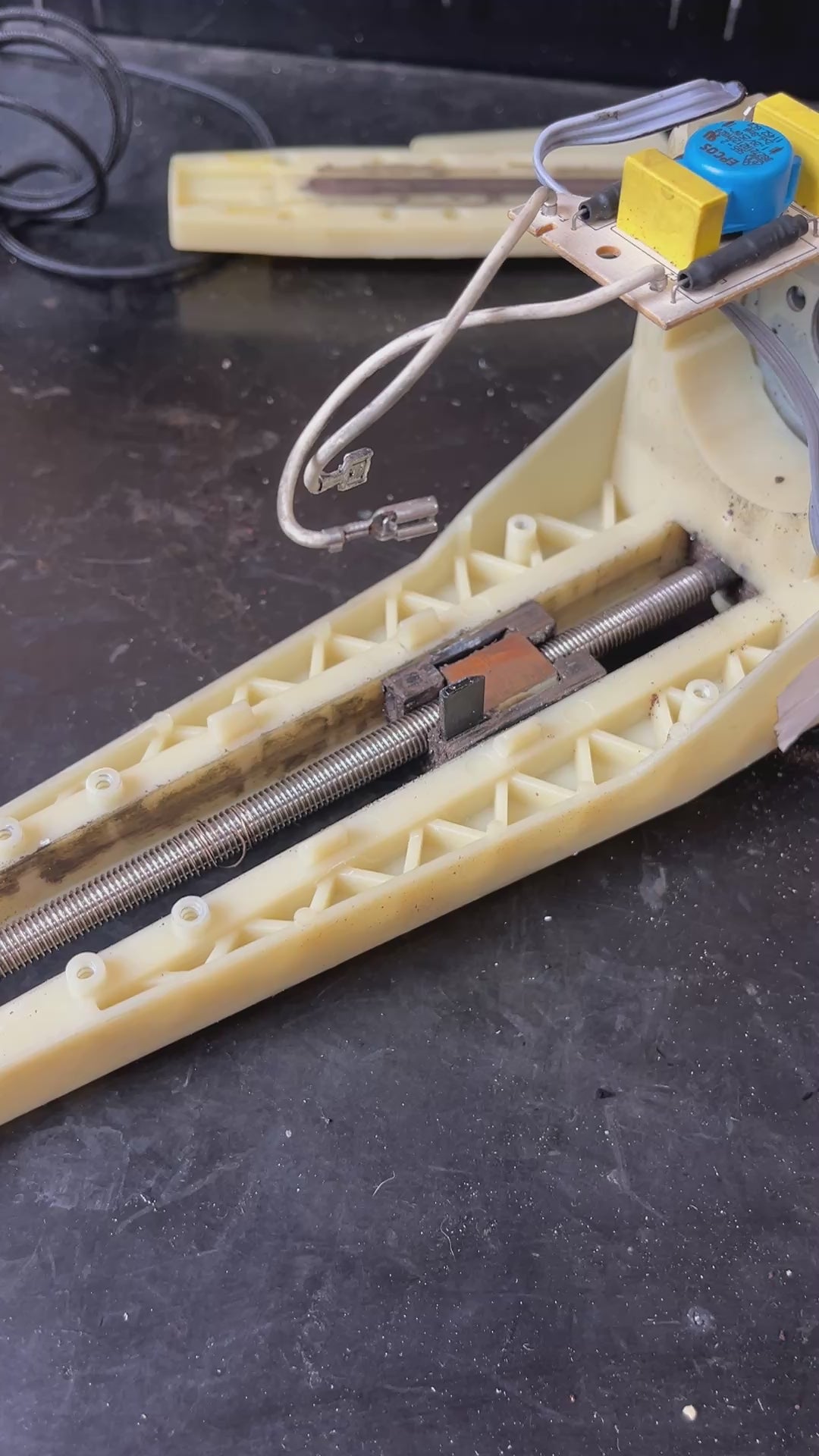

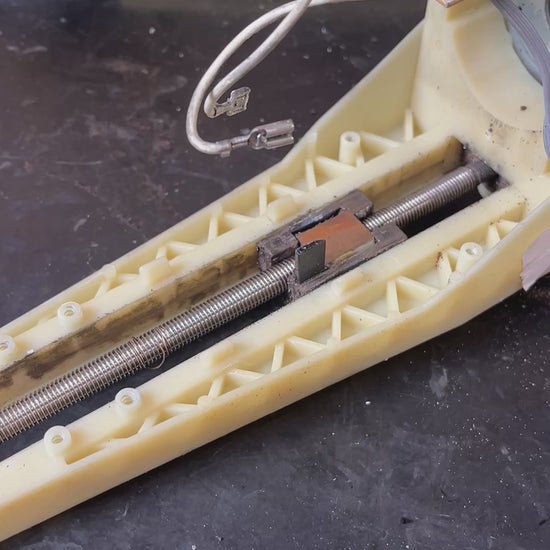

Is your DeLonghi infuser stuck, not moving properly, or failing to reach the correct position? The most common cause is a stripped brew unit drive spindle nut. Until now you had to replace the entire transmission assembly at great expense. This replacement nut lets you fix it for a fraction of the cost.

✅ WHY THIS NUT?
• Printed in Nylon PA12-CF filament — a tough engineering material

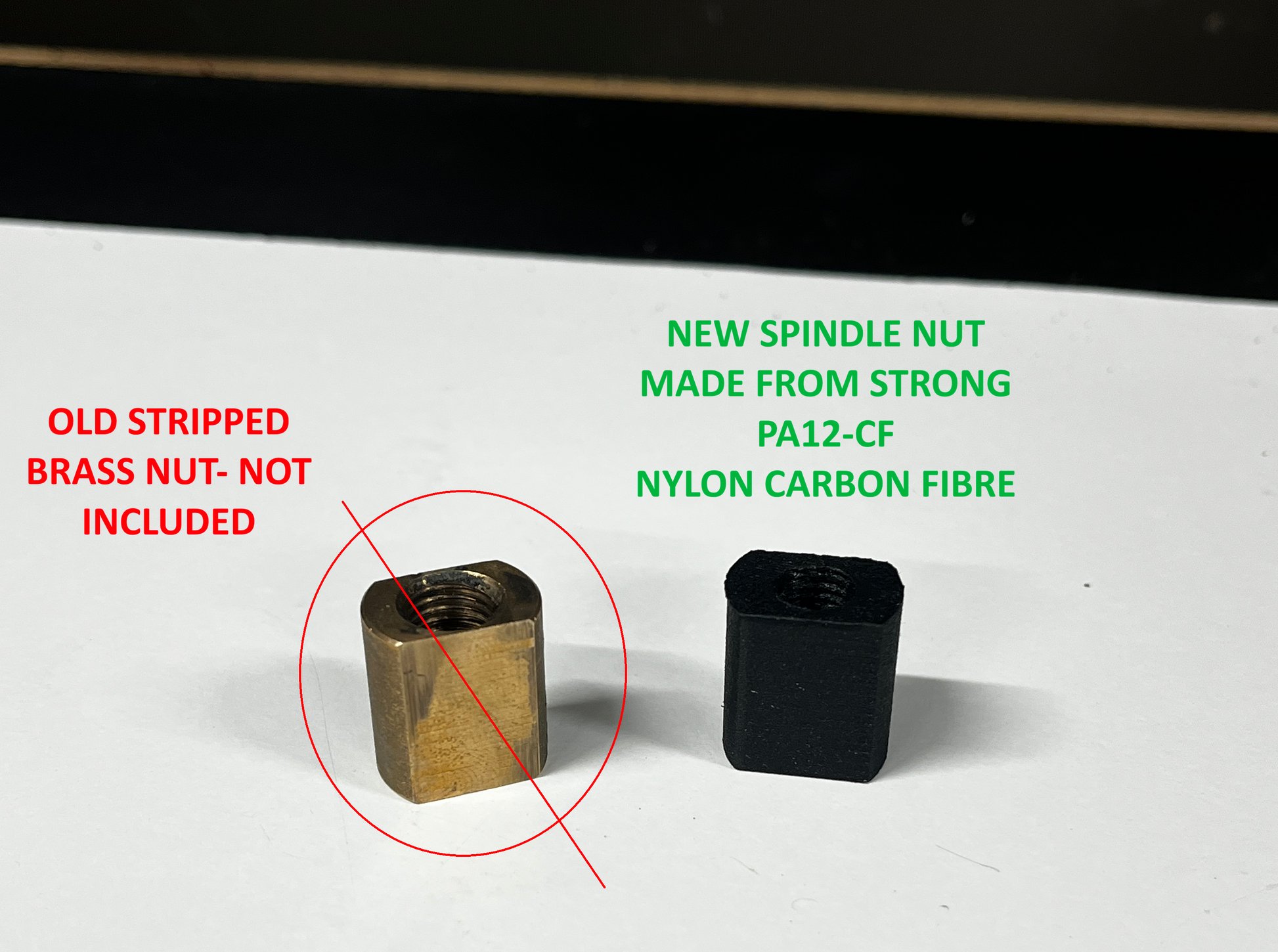

• Lower coefficient of friction than the original brass nut, meaning it slides more easily on the lead screw
• Strong enough for the loads in this application
• A sustainable repair — save your machine from landfill!
• Australian made and sold — no waiting weeks for overseas shipping

⚠️ IMPORTANT — CHECK BEFORE ORDERING:
This nut is suitable for spindles (threaded rods) with an outer diameter of Ø 8.80 mm. DeLonghi sometimes installed drive units with different spindle sizes in the same model. Please measure your spindle OD before ordering to confirm compatibility.
✅ WHAT'S INCLUDED:
• 1x Replacement brew unit drive spindle nut
• Fitting instructions — We have created a full step-by-step photo repair guide on iFixit (search "DeLonghi ECAM6900 PrimaDonna Exclusive Transmission Nut Replacement")

✅ LUBRICATION:
Apply food-safe grease to the spindle and all sliding surfaces on reassembly. We recommend INOX MX6 PTFE based food-safe grease.

✅ COMPATIBLE MODELS:

LEAD SCREW SPINDLE MUST BE 8.8 OUTER DIAMETER

AEG
CG6200, CG6400, CG6600 Caffe Grande
CS5000, CS5200 Caffe Silenzio

DeLonghi
EABI6600 PrimaDonna
EAM2000, EAM2500.B, EAM2600, EAM3000.B, EAM3100.SB, EAM3200.S, EAM3250, EAM3300, EAM3300.S, EAM3400, EAM3400.S, EAM3500, EAM3500.N, EAM3500.S, EAM4000.B, EAM4200.S, EAM4300, EAM4400, EAM4500
ECAM21.110.B/SB/W, ECAM21.116.B/SB, ECAM21.117.B/SB/W, ECAM21.118.B/W
ECAM22.110.B/SB, ECAM22.320.B/SB, ECAM22.360.B/S, ECAM22.366.B/S
ECAM23.120.B/SB, ECAM23.123.B, ECAM23.210.B/W, ECAM23.216.B, ECAM23.217.SB
ECAM23.420.SB/SR/ST/SW, ECAM23.426.SB, ECAM23.427.B/R/S
ECAM23.450.B/S, ECAM23.460.B, ECAM23.463.B, ECAM23.466.B/S
ECAM24.210.SB, ECAM24.450.S, ECAM24.467.S
ECAM25.120.B/SB, ECAM25.128.B/R/Y, ECAM25.452.B/S, ECAM25.457.B/S, ECAM25.462.B/S, ECAM25.467.B/S
ECAM26.455 (all variants) PrimaDonna S De Luxe
ECAM28.464.M, ECAM28.465.AZ/BG/M/MB, ECAM28.466.M/MB, ECAM28.467.B/BC PrimaDonna S
ECAM350.15.B, ECAM350.35.SB/W, ECAM350.55.B, ECAM350.75.S Dinamica
ECAM352.55.SB, ECAM353.75.B/W, ECAM358.15.B/R Dinamica
ECAM370.85/SB, ECAM370.95.S/T, ECAM376.95.S/T Dinamica Plus
ECAM44.620.S, ECAM44.660.B/BH, ECAM44.666.B, ECAM44.668.T Eletta
ECAM45.326.S, ECAM45.366.B/S/W, ECAM45.760.B/W, ECAM45.766.B/W Eletta Cappuccino
ECAM510.55.M PrimaDonna S Evo
ECAM550.55.SB, ECAM556.55.MS/SB/W, ECAM556.75.MS PrimaDonna Class
ECAM650.55.MS, ECAM650.75.MS, ECAM656.55.MS, ECAM656.75.MS, ECAM656.85.MS PrimaDonna Elite
ECAM6900 PrimaDonna Exclusive
EPAM960.75.GLM Maestosa
ESAM02.110.SB, ESAM03.105.S, ESAM03.110, ESAM03.120.S, ESAM03.126.S Magnifica
ESAM04.110.B/S, ESAM04.120.S, ESAM04.320.S, ESAM04.350.S Magnifica
ESAM2000, ESAM2200.S, ESAM2500.B, ESAM2600, ESAM2800.S/SB, ESAM2803.SB, ESAM2900
ESAM3000.B, ESAM3100.SB, ESAM3200.G/S/V, ESAM3240.O, ESAM3250, ESAM3300, ESAM3300.S, ESAM3350, ESAM3400, ESAM3400.R/S, ESAM3500, ESAM3500.S, ESAM3550.B, ESAM3600, ESAM3600.S, ESAM3650
ESAM4000, ESAM4000.B, ESAM4008.B, ESAM4200.S, ESAM428.40.BS, ESAM428.80.SB, ESAM4300, ESAM4400, ESAM4500, ESAM4500.B, ESAM4506
ESAM5400, ESAM5450, ESAM5500 (all variants) Perfecta
ESAM5550.B/BW/R, ESAM5556.B, ESAM5600, ESAM5600.S, ESAM5700.S, ESAM5708.R/S Perfecta
ESAM6600, ESAM6620, ESAM6650.S, ESAM6700, ESAM6708, ESAM6720, ESAM6750 PrimaDonna
ESAM6850.M, ESAM6900.M PrimaDonna Exclusive
ETAM29.510.B/SB, ETAM29.620.SB, ETAM29.660.S/SB, ETAM29.666.S/T Autentica
ETAM36.365.M/MB, ETAM36.366.MB PrimaDonna XS

Not sure if your model is listed? Feel free to message us before purchasing.
